How can I get a price quote for FESTO FBA-CO-SUB-9-M12?

You can request a fast quote for FESTO FBA-CO-SUB-9-M12 from Yılsa Engineering. Reference part number CEY-937FC781F5C2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO FBA-CO-SUB-9-M12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO FBA-CO-SUB-9-M12 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO FBA-CO-SUB-9-M12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

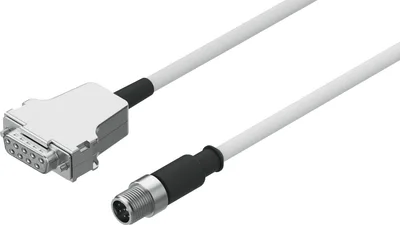

FESTO FBA-CO-SUB-9-M12

Fieldbus adapter. 9-pin Sub-D plug to 5-pin round plug/M12 socket. For CANopen and DeviceNet

FESTOMFR # FBA-CO-SUB-9-M12SKU # CEY-937FC781F5C2

ProtocolDeviceNet®

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletStraight

Electrical connection 2, functionControl side

Have questions?Chat on WhatsApp

About This Product

Fieldbus adapter. 9-pin Sub-D plug to 5-pin round plug/M12 socket. For CANopen and DeviceNet

FESTO FBA-CO-SUB-9-M12

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

ProtocolDeviceNet®

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemSub-D

Electrical connection 1, number of connections/cores9

Electrical connection 1, used connections/cores6

Electrical connection 1, type of mounting2x screw 4-40 UNC-2A

Electrical connection 1, connection pattern00995638

Electrical connection 2, functionControl side

Electrical connection 2, designRound

Electrical connection 2, connection typePlug

Electrical connection 2, cable outletStraight

Electrical connection 2, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 2, number of connections/cores5

Electrical connection 2, used connections/cores5

Electrical connection 2, connection pattern00995383

Nominal operating voltage DC24

ShieldingYes

Cable length0.1

Cable diameter6.3

Cable structure4 x 0.34 mm²

Nominal cross section conductor0.34

Degree of protectionIP67

Note on degree of protectionIn mounted state

Ambient temperature-5, 50

LABS (PWIS) conformityVDMA24364 zone III

Note on materialsRoHS compliant

Corrosion resistance class CRC0 - No corrosion stress

Material cable sheathTPE-U(PUR)
