How can I get a price quote for Festo EXCT-100- -?

You can request a fast quote for Festo EXCT-100- - from Yılsa Engineering. Reference part number YLSAHYK5DGMLIW6. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EXCT-100- - in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EXCT-100- - genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EXCT-100- -?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

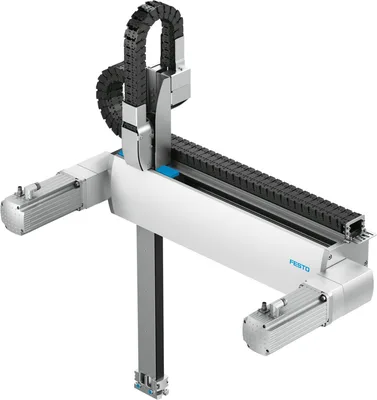

Festo EXCT-100- -

Linear gantry. Axis mechanism based on parallel kinematic operational principle. Very high dynamic response enables extremely short cycle times. For two-dimensional movements in vertical working areas. Flat system design and low moving dead weight. The motor can be flexibly mounted on 4 sides

FestoMFR # EXCT-100- -SKU # YLSAHYK5DGMLIW6

Size100

Mounting positionVertical

DesignLinear gantry

Operating pressure-0.95, 8

Max. acceleration30

Max. speed4

Have questions?Chat on WhatsApp

About This Product

Festo EXCT-100- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size100

Mounting positionVertical

DesignLinear gantry

Operating pressure-0.95, 8

Max. acceleration30

Max. speed4

Repetition accuracy±0.1 mm

Duty cycle100%

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-10, 60

Relative air humidity0 - 90%

Sound pressure level77

Degree of protectionIP40

Ambient temperature10, 40

Max. process force in Z direction500

Nominal load at max. dynamic response10

Type of mountingWith mounting kit, With slot nuts

Note on materialsRoHS compliant

Accessories 31

Genuine accessories that can be used with the Festo EXCT-100- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
HAPG-SD2-1	Adapter kit · Mounting accessories
HAPG-SD2-2	Adapter kit · Mounting accessories
HAPG-SD2-12	Adapter kit · Mounting accessories
HAPG-SD2-13	Adapter kit · Mounting accessories
HAPG-49	Adapter kit · Mounting accessories
HAPG-51	Adapter kit · Mounting accessories
HAPG-79	Adapter kit · Mounting accessories
HAPG-90	Adapter kit · Mounting accessories
HAPG-94	Adapter kit · Mounting accessories
HAPG-95	Adapter kit · Mounting accessories
HAPG-SD2-32	Adapter kit · Mounting accessories
HAPG-SD2-36	Adapter kit · Mounting accessories
HAPG-SD2-48	Adapter kit · Mounting accessories
HAPG-SD2-45	Adapter kit · Mounting accessories
HMSV-56	Adapter kit · Mounting accessories
DHAA-G-G6-20-B8-40	Adapter kit · Mounting accessories
DHAA-G-Q5-16-B8-16	Adapter kit · Mounting accessories
DHAA-G-Q5-16-B11-16	Adapter kit · Mounting accessories
DHAA-G-G6-25-B11-32	Adapter kit · Mounting accessories
DHAA-G-G6-20-B11-25	Adapter kit · Mounting accessories
DHAA-D-E8-75-Q11-16	Adapter kit · Mounting accessories
DHAA-D-E8-75-Q11-20	Adapter kit · Mounting accessories
DHAA-G-G3-20-B13-35	Adapter kit · Mounting accessories
DHAA-G-H2-16-B13-40	Adapter kit · Mounting accessories
DHAA-G-H2-20-B13-50	Adapter kit · Mounting accessories
DHAA-G-H2-20-B13G-50	Adapter kit · Mounting accessories
DHAA-G-G6-20-B6-14	Adapter kit · Mounting accessories
EAPR-E17-S	Sensing kit · Mounting accessories
CACR-LE2-50-W500	Braking resistor · Electrical accessories
EADH-E17-MP1	Multi-pin-SET · Electrical accessories
EAMM-A-L62-100A-G2	Axial kit · Mounting accessories
