How can I get a price quote for Festo EXCL-15-?

You can request a fast quote for Festo EXCL-15- from Yılsa Engineering. Reference part number YLSXG81HG8IBBA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EXCL-15- in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EXCL-15- genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EXCL-15-?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

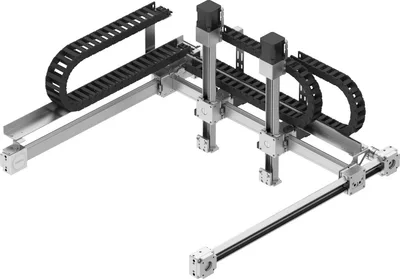

Festo EXCL-15-

Three-dimensional gantry. Multi-axis gantry with small footprint. With one or 2 Z-axes (or as a planar surface gantry X/Y without Z-axes). X, Y workspace configurable in 1 mm increments up to 1000 mm x 700 mm. Z-axis stroke can be selected between 50, 100, 150 and 200 mm. Optional 6-axis motion controller, programmable via G-code. Stepper motors, reference switches and cables always included. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EXCL-15-SKU # YLSXG81HG8IBBA

Size15

Stroke of the X-axis200, 1000

Stroke of the Y-axis200, 700

Mounting positionHorizontal

DesignThree-dimensional gantry system

Type of motorStepper motor

Have questions?Chat on WhatsApp

About This Product

Festo EXCL-15-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size15

Stroke of the X-axis200, 1000

Stroke of the Y-axis200, 700

Mounting positionHorizontal

DesignThree-dimensional gantry system

Type of motorStepper motor

Max. acceleration1

Max. speed0.5

Repetition accuracy±0.1 mm

Max. search speed X-axis0.03

Max. creep speed X-axis0.003

Max. search speed velocity Y-axis0.03

Max. creep speed Y-axis0.003

Max. search speed Z-axis0.015

Max. creep speed Z-axis0.003

Nominal voltage X-axis1.68

Nominal voltage Y-axis3.2

Nominal voltage Z-axis3.2

Nominal current X-axis4.2

Nominal current Y-axis2

Nominal current Z-axis2

Nominal current per phase, effective2, 4.2

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-10, 60

Relative air humidity0 - 90%

Degree of protectionIP10

Ambient temperature10, 40

Motor holding torque0.5, 1.4

Max. process force in Z direction15

Feed constant of the X-axis64

Feed constant of the Y-axis37.7

Feed constant of the Z-axis5

Type of mountingwith female thread M3

Note on materialsRoHS compliant

Accessories 1

Genuine accessories that can be used with the Festo EXCL-15- motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
