How can I get a price quote for Festo ERMS-32-?

You can request a fast quote for Festo ERMS-32- from Yılsa Engineering. Reference part number YLSEFDPMQABFU3R. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo ERMS-32- in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo ERMS-32- genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo ERMS-32-?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

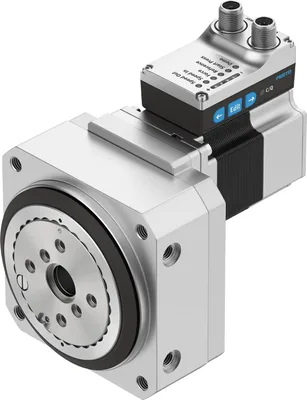

Festo ERMS-32-

Rotary drive unit. Complete solution consisting of drive mechanics, motor and servo drive. Absorption of lateral forces and torques thanks to sturdy, backlash-free and precise ball bearings on the rotating plate. Integrated through-feed for cables and tubing through sealed hollow shaft. Product of the Simplified Motion Series: doesn't need any external servo drive or any control cabinet for the installation. Two control options integrated as standard: digital I/O and IO-Link. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # ERMS-32-SKU # YLSEFDPMQABFU3R

Size32

Mounting positionAny

Type of mountingWith female thread

Rotation angle90°, 180°

Gear unit ratio7:1

Max. rotational speed100

Have questions?Chat on WhatsApp

About This Product

Festo ERMS-32-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size32

DesignElectromechanical rotary drive, With integrated drive, With integrated gear unit

Mounting positionAny

Type of mountingWith female thread

Rotation angle90°, 180°

Gear unit ratio7:1

Max. rotational speed100

Max. speed at 90°100

Torsional backlash0.2

Repetition accuracy±0.1°

Position detectionMotor encoder

Max. axial force450

Max. radial force550

Permissible mass moment of inertia0.0164

Product weight2304

Stepper angle for complete step1.8

Stepping angle tolerance±5%

Duty cycle100%

Power supply, connection typePlug

power supply, connection systemM12x1, T-coded according to EN 61076-2-111

Power supply, number of pins/wires4

Power supply, connection pattern00995989

Logic interface, connection typePlug

Logic interface, connection technologyM12x1, A-coded according to EN 61076-2-101

Logic interface, number of pins/wires8

Logic interface, plug pattern00992264

Max. cable length15 m outputs, 15 m inputs, 20 m with IO-Link® operation

Nominal voltage DC24

Nominal current5.3

Nominal motor current5

Max. current consumption5300

Permissible voltage fluctuations+/- 15 %

Number of digital logic inputs2

Features of logic inputConfigurable, Not galvanically isolated

Specification logic inputBased on IEC 61131-2, type 1

Working range of logic input24

Switching logic for inputsNPN (negative switching), PNP (positive switching)

Number of digital logic outputs 24 V DC2

Features of digital logic outputsConfigurable, Not galvanically isolated

Max. current digital logic outputs100

Switching logic for outputsNPN (negative switching), PNP (positive switching)

IO-Link, SIO-Mode supportYes

IO-Link, Protocol versionDevice V 1.1

IO-Link, communication modeCOM3 (230.4 kBaud)

IO-Link, Port classA

IO-Link, Number of ports1

IO-Link, Process data length OUT2 bytes

IO-Link, Process data content OUTMove in 1 bit, Move out 1 bit, Quit Error 1 bit, Move intermediate 1 bit

IO-Link, Process data length IN2 bytes

IO-Link, Process data content INState Device 1 bit, State In 1 bit, State Intermediate 1 bit, State Move 1 bit, State Out 1 bit

IO-Link, Service data IN32 bit Force, 32 bit position, 32 bit speed

IO-Link, Min. cycle time1 ms

IO-Link, Data storage required500

IO-Link, connection technologyPlug

Parameterisation interfaceIO-Link®, User interface

Insulation protection classB

Type of motorStepper motor

Rotor position sensorAbsolute encoder, single turn

Rotor position sensor, encoder measuring principlemagnetic

Rotor position transducer resolution16

ReferencingPositive fixed stop block, Negative fixed stop block

Protective functionTemperature monitoring

Additional functionsBuilt-in end-position sensing

DisplayLED

Ready status indicationLED

Symbol00997295

Angular acceleration140

ApprovalRCM

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Peak torque5.6

Interface code, basisE8-55

Degree of protectionIP40

Protection classIII

Storage temperature-20, 60

Ambient temperature0, 50

Note on ambient temperaturePower must be reduced by 2% per K at ambient temperatures above 30°C.

Relative air humidity0 - 85%

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

LABS (PWIS) conformityVDMA24364 zone III

Note on materialsRoHS compliant

Material flangeAnodised wrought aluminium alloy

Material housingAnodised wrought aluminium alloy

Speed "Speed press"2

Max. current consumption, logic0.3

Maintenance intervalLifetime lubrication

Accessories 16

Genuine accessories that can be used with the Festo ERMS-32- motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBC-M12W8-E-10-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12W8-E-5-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12W8-E-2-N-B-LE8	Connecting cable · Connecting cables
NEBL-T12W4-E-5-N-LE4	Connecting cable · Connecting cables
NEFC-M12G8-0.3-M12G5-LK	Adapter · Connecting cables
NEBL-T12G4-E-10-N-LE4	Connecting cable · Connecting cables
NEBL-T12G4-E-2-N-LE4	Connecting cable · Connecting cables
NEBC-M12G8-E-10-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12G8-E-5-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12G8-E-2-N-B-LE8	Connecting cable · Connecting cables
NEBL-T12G4-E-5-N-LE4	Connecting cable · Connecting cables
NEBL-T12W4-E-10-N-LE4	Connecting cable · Connecting cables
CDSU-1	IO-Link® master USB · Electrical accessories
NEBL-T12W4-E-2-N-LE4	Connecting cable · Connecting cables
ZBH-12-B	Centring sleeve · Mounting accessories
ZBH-7-B	Centring sleeve · Mounting accessories
