How can I get a price quote for Festo ERMO-16-ST-E?

You can request a fast quote for Festo ERMO-16-ST-E from Yılsa Engineering. Reference part number YLSP3H4I5FZXACI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo ERMO-16-ST-E in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo ERMO-16-ST-E genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo ERMO-16-ST-E?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

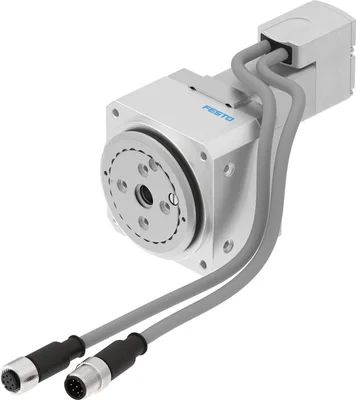

Festo ERMO-16-ST-E

Rotary drive. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems. Integrated motor with gear stage for a compact design. Motor control with encoder to achieve high angular accuracy. Sturdy output bearings for absorbing high forces and torques. Backlash-free, pre-stressed rotating plate with very good axial eccentricity and concentricity properties. Quick and accurate installation

FestoMFR # ERMO-16-ST-ESKU # YLSP3H4I5FZXACI

Size16

Mounting positionAny

Type of mountingWith female thread

Rotation angleInfinite

Gear unit ratio9:1

Nominal torque0.8

Have questions?Chat on WhatsApp

About This Product

Festo ERMO-16-ST-E

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size16

DesignElectromechanical rotary drive, With integrated gear unit

Mounting positionAny

Type of mountingWith female thread

Rotation angleInfinite

Gear unit ratio9:1

Nominal torque0.8

Nominal rotary speed100

Max. speed at 90°200

Impact energy in end positions7.0E-5

Torsional backlash0.2

Repetition accuracy±0.05°

Max. axial force290

Max. radial force300

Permissible mass moment of inertia0.0013

Product weight900

Stepper angle for complete step1.8

Stepping angle tolerance±5%

Mass moment of inertia JO0.0383

Duty cycle100%

Nominal operating voltage DC24

Operating voltage DC for brake24

Power consumption, brake8

Brake holding torque1

Mass moment of inertia of brake0.0069

Nominal motor current1.4

Insulation protection classB

Type of motorStepper motor

Rotor position sensorIncremental encoder

Rotor position encoder interfaceRS422 TTL AB channels + zero index

Rotor position sensor, encoder measuring principleOptical

Electrical connector systemPlug

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions

Bending radius, fixed cable60

Interface code, basisE8-45

Degree of protectionIP40

Storage temperature-20, 60

Ambient temperature0, 50

Relative air humidity0 - 85%, Non-condensing

LABS (PWIS) conformityVDMA24364 zone III

Note on materialsRoHS compliant

Material flangeWrought aluminium alloy, anodised

Material housingWrought aluminium alloy, anodised

Accessories 36

Genuine accessories that can be used with the Festo ERMO-16-ST-E motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GFCH-1	Commissioning · Services
GFCH-2	Commissioning · Services
GFCH-3	Commissioning · Services
GFCH-1-G	Commissioning · Services
GFCH-2-G	Commissioning · Services
GFCH-3-G	Commissioning · Services
GFCH-1-R	Remote commissioning · Services
GFCH-2-R	Remote commissioning · Services
GFCH-3-R	Remote commissioning · Services
GFCH-1-G-R	Remote commissioning · Services
GFCH-2-G-R	Remote commissioning · Services
GFCH-3-G-R	Remote commissioning · Services
SIEN-M8B-PS-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PS-S-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PO-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PO-S-L	Proximity sensor · Cylinder sensors for direct mounting
NEBM-SM12G8-E-1.5-Q5-LE6	Motor cable · Electrical accessories
NEBM-SM12G8-E-2.5-Q5-LE6	Motor cable · Electrical accessories
NEBM-SM12G8-E-5-Q5-LE6	Motor cable · Electrical accessories
NEBM-SM12G8-E-7-Q5-LE6	Motor cable · Electrical accessories
NEBM-SM12G8-E-10-Q5-LE6	Motor cable · Electrical accessories
NEBM-SM12G8-E- -Q5-LE6	Motor cable · Electrical accessories
NEBM-M12G8-E-1.5-LE8	Encoder cable · Electrical accessories
NEBM-M12G8-E-2.5-LE8	Encoder cable · Electrical accessories
NEBM-M12G8-E-5-LE8	Encoder cable · Electrical accessories
NEBM-M12G8-E-7-LE8	Encoder cable · Electrical accessories
NEBM-M12G8-E-10-LE8	Encoder cable · Electrical accessories
NEBM-M12G8-E- -LE8	Encoder cable · Electrical accessories
EADP-ES-R3-16	Stop (kit) · Mounting accessories
DHAA-G-R3-16-B18-10	Adapter kit · Mounting accessories
DHAA-G-R3-16-B18-16	Adapter kit · Mounting accessories
DHAA-G-R3-16-B19-16	Adapter kit · Mounting accessories
DHAA-G-R3-16-B19-32	Adapter kit · Mounting accessories
DHAA-G-R3-16-B8-16	Adapter kit · Mounting accessories
DHAA-G-R3-16-B8-20	Adapter kit · Mounting accessories
ZBH-7-B	Centring sleeve · Mounting accessories
