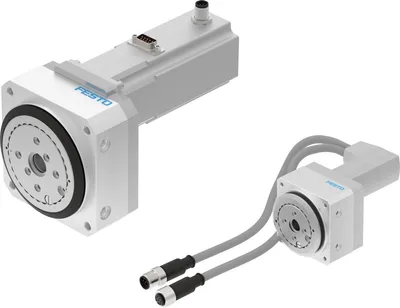

Festo ERMO-12

Rotary drive. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems. Integrated motor with gear stage for a compact design. Motor control with encoder to achieve high angular accuracy. Sturdy output bearings for absorbing high forces and torques. Backlash-free, pre-stressed rotating plate with very good axial eccentricity and concentricity properties. Quick and accurate installation

FestoMFR # ERMO-12SKU # YLSQNHF89KQTXSI

Size12

Mounting positionAny

Type of mountingWith female thread

Rotation angleInfinite

Gear unit ratio9:1

Nominal torque0.15

Have questions?Chat on WhatsApp

About This Product

Festo ERMO-12

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size12

DesignElectromechanical rotary drive, With integrated gear unit

Mounting positionAny

Type of mountingWith female thread

Rotation angleInfinite

Gear unit ratio9:1

Nominal torque0.15

Nominal rotary speed100

Max. speed at 90°200

Impact energy in end positions2.0E-5

Torsional backlash0.2

Repetition accuracy±0.05°

Max. axial force180

Max. radial force200

Permissible mass moment of inertia3.0E-4

Product weight475

Stepper angle for complete step1.8

Stepping angle tolerance±5%

Mass moment of inertia JO0.0079

Duty cycle100%

Nominal operating voltage DC24

Nominal motor current0.8

Insulation protection classB

Type of motorStepper motor

Rotor position sensorIncremental encoder

Rotor position encoder interfaceRS422 TTL AB channels + zero index

Rotor position sensor, encoder measuring principleOptical

Electrical connector systemPlug

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions

Bending radius, fixed cable60

Interface code, basisE8-35

Degree of protectionIP40

Storage temperature-20, 60

Ambient temperature0, 50

Relative air humidity0 - 85%, Non-condensing

LABS (PWIS) conformityVDMA24364 zone III

Note on materialsRoHS compliant

Material flangeWrought aluminium alloy, anodised

Material housingWrought aluminium alloy, anodised

Accessories 40

Genuine accessories that can be used with the Festo ERMO-12 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GFCH-1	Commissioning · Services
GFCH-2	Commissioning · Services
GFCH-3	Commissioning · Services
GFCH-1-G	Commissioning · Services
GFCH-2-G	Commissioning · Services
GFCH-3-G	Commissioning · Services
GFCH-1-R	Remote commissioning · Services
GFCH-2-R	Remote commissioning · Services
GFCH-3-R	Remote commissioning · Services
GFCH-1-G-R	Remote commissioning · Services
GFCH-2-G-R	Remote commissioning · Services
GFCH-3-G-R	Remote commissioning · Services
SIEN-M5B-NS-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M5B-NS-S-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M5B-PS-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M5B-PS-S-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M5B-NO-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M5B-NO-S-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M5B-PO-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M5B-PO-S-L	Proximity sensor · Cylinder sensors for direct mounting
NEBM-SM12G8-E-1.5-Q5-LE6	Motor cable · Electrical accessories
NEBM-SM12G8-E-2.5-Q5-LE6	Motor cable · Electrical accessories
NEBM-SM12G8-E-5-Q5-LE6	Motor cable · Electrical accessories
NEBM-SM12G8-E-7-Q5-LE6	Motor cable · Electrical accessories
NEBM-SM12G8-E-10-Q5-LE6	Motor cable · Electrical accessories
NEBM-SM12G8-E- -Q5-LE6	Motor cable · Electrical accessories
NEBM-M12G8-E-1.5-LE8	Encoder cable · Electrical accessories
NEBM-M12G8-E-2.5-LE8	Encoder cable · Electrical accessories
NEBM-M12G8-E-5-LE8	Encoder cable · Electrical accessories
NEBM-M12G8-E-7-LE8	Encoder cable · Electrical accessories
NEBM-M12G8-E-10-LE8	Encoder cable · Electrical accessories
NEBM-M12G8-E- -LE8	Encoder cable · Electrical accessories
DHAA-G-R3-12-B18-6	Adapter kit · Mounting accessories
DHAA-G-R3-12-B18-10	Adapter kit · Mounting accessories
DHAA-G-R3-12-B20-10	Adapter kit · Mounting accessories
DHAA-G-R3-12-B8-16	Adapter kit · Mounting accessories
DHAA-G-R3-12-B8-20	Adapter kit · Mounting accessories
ZBH-7-B	Centring sleeve · Mounting accessories
EADP-ES-R3-12	Stop (kit) · Mounting accessories
DHAA-G-R3-12-B19-16	Adapter kit · Mounting accessories
