How can I get a price quote for Festo EPRF-BS-55- -?

You can request a fast quote for Festo EPRF-BS-55- - from Yılsa Engineering. Reference part number YLSZAQ4RUFC9JI4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EPRF-BS-55- - in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EPRF-BS-55- - genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EPRF-BS-55- -?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

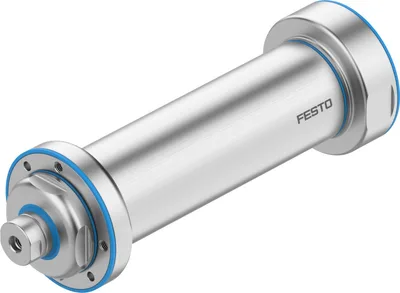

Festo EPRF-BS-55- -

Electric cylinder. Hygienic series for the most demanding environmental conditions. Six mounting options for maximum flexibility in mechanical installation. Stainless steel housing made of 1.4404 / 316L with IP69K protection class. Suitable for contact with food. Easy-to-clean design for simple maintenance. Highest corrosion resistance for long service life. NSF-H1 Grease certified for hygiene-critical applications. Five sizes, stroke lengths up to 1000mm and feed forces up to max. 12,5kN. Motor mounting kits for parallel and axial motor mounting orientations. Two IP69K piston rod seals connected in series. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EPRF-BS-55- -SKU # YLSZAQ4RUFC9JI4

Size55

Stroke25, 800

Stroke reserve0

Piston rod threadM12x1.25

Reversing backlash theoretical100

Spindle diameter16

Have questions?Chat on WhatsApp

About This Product

Festo EPRF-BS-55- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size55

Stroke25, 800

Stroke reserve0

Piston rod threadM12x1.25

Reversing backlash theoretical100

Spindle diameter16

Spindle pitch5, 16

Torsional backlash at piston rod +/-0.7

Mounting positionAny

Piston-rod endMale thread, Female thread

Type of motorServo motor

Position detectionNone

DesignElectric cylinder with ball screw

Spindle typeBall screw

Symbol00991941

Protection against torque/guideWith plain-bearing guide

Max. drive speed3000, 3750

Max. acceleration5, 15

Max. speed250, 1000

Max. homing speed0.01

Repetition accuracy±0.02 mm

Duty cycle100%

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC4 - Very high corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-20, 60

Suitable for use with foodSee declaration of conformity

Relative air humidity0 - 95%, Non-condensing

Degree of protectionIP69K

Ambient temperature-10, 60

Impact energy in end positions0.072

Max. drive torque2.65, 6.05

Max. moment Mx0

Max. moment My18.8

Max. moment Mz18.8

Max. radial force at drive shaft175

Max. feed force Fx2200, 3000

Frictional torque independent of load0.181, 0.47

Reference value effective load, horizontal300

Reference value effective load, vertical150

Mass moment of inertia JH per metre of stroke0.3367, 0.3798

Mass moment of inertia JL per kg of working load0.0063, 0.0649

Mass moment of inertia JO0.0575, 0.0605

Reference service life5000

Maintenance intervalLifetime lubrication

Moving mass for 0 mm stroke529

Additional moving mass per 10 mm stroke11.1

Basic weight for 0 mm stroke1760, 2430

Additional weight per 10 mm stroke51.4

Type of mountingWith through-hole and rear mounting bracket, With through-hole, With mounting bracket, With female thread and rear mounting bracket, With female thread, With trunnion mounting on end cap

Note on materialsRoHS compliant

Material cover capHigh-alloy stainless steel

Material coverHigh-alloy stainless steel

Material sealsTPE-U(PU)

Material dynamic sealsTPE-U(PU)

Material housingHigh-alloy stainless steel

Material piston rodHigh-alloy stainless steel

Material ball screw nutSteel

Material spindleBearing steel

Material cylinder barrelHigh-alloy stainless steel

Accessories 18

Genuine accessories that can be used with the Festo EPRF-BS-55- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
DARP-M12P-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
DARP-M8-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
EAMM-A-C50-10-68C-S5	Axial kit · Mounting accessories
EAMM-A-C50-10-88C-S5	Axial kit · Mounting accessories
EAMM-A-C50-10-108C-S5	Axial kit · Mounting accessories
EAMM-U-60-C50-10-68C-91-S5	Parallel kit · Mounting accessories
EAMM-U-86-C50-10-88C-102-S5	Parallel kit · Mounting accessories
EAMM-U-86-C50-10-108C-102-S5	Parallel kit · Mounting accessories
EAMM-A-C50-10-79CB-S5	Axial kit · Mounting accessories
EAMM-A-C50-10-80CA-S5	Axial kit · Mounting accessories
EAMM-A-C50-10-89CA-S5	Axial kit · Mounting accessories
EAMM-A-C50-10-89CC-S5	Axial kit · Mounting accessories
EAMM-A-C50-10-90CA-S5	Axial kit · Mounting accessories
EAMM-A-C50-10-110CA-S5	Axial kit · Mounting accessories
EAMM-A-C50-10-114CA-S5	Axial kit · Mounting accessories
EAMM-U-86-C50-10-88C-102-S5-K	Parallel kit · Mounting accessories
EAMM-U-86-C50-10-108C-102-S5-K	Parallel kit · Mounting accessories
EAMM-U-60-C50-10-68C-91-S5-K	Parallel kit · Mounting accessories
