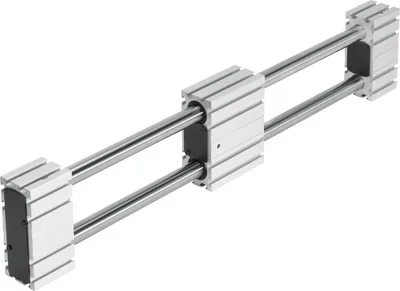

Festo ELFR-...-55- -

Guide axis. For toothed belt axes ELGR-TB (drive axes). For spindle/toothed belt axes ELGA (drive axes). For supporting forces and torques in multi-axis applications. High torsional resistance

FestoMFR # ELFR-...-55- -SKU # YLSJ1EAGT3KP6WU

Working stroke50, 1500

Size55

Mounting positionAny

DesignGuide axis without drive

Symbol00992984

Max. acceleration50

Have questions?Chat on WhatsApp

About This Product

Guide axis. For toothed belt axes ELGR-TB (drive axes). For spindle/toothed belt axes ELGA (drive axes). For supporting forces and torques in multi-axis applications. High torsional resistance

Festo ELFR-...-55- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Working stroke50, 1500

Size55

Mounting positionAny

GuidePlain-bearing guide, Recirculating ball bearing guide

DesignGuide axis without drive

Symbol00992984

Max. acceleration50

Max. speed1, 3

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Degree of protectionIP20

Ambient temperature-10, 50

2nd moment of area Iy38300

2nd moment of area Iz41180

Max. force Fy300

Max. force Fz300

Max. idle running transfer resistance10

Reference service life5000

Additional moving mass per 10 mm stroke0

Basic weight for 0 mm stroke4550

Additional weight per 10 mm stroke77

Material profileWrought aluminium alloy, anodised

Note on materialsRoHS compliant

Material drive coverWrought aluminium alloy, anodised

Material guide railSteel

Material slideWrought aluminium alloy, anodised

Accessories 6

Genuine accessories that can be used with the Festo ELFR-...-55- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NST-5-M5-1	Slot nut · Mounting accessories
ABP-5	Slot cover · Mounting accessories
MUE-45	Profile mounting · Cylinder mountings
EAPM-L4-SHS	Sensor bracket · Mounting accessories
EAPM-L4-SLS	Switch lug · Mounting accessories
ZBH-7-B	Centring sleeve · Mounting accessories
