How can I get a price quote for Festo ELFD-KF-120- -?

You can request a fast quote for Festo ELFD-KF-120- - from Yılsa Engineering. Reference part number YLS7Y1S7GQ9XNRI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo ELFD-KF-120- - in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo ELFD-KF-120- - genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo ELFD-KF-120- -?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

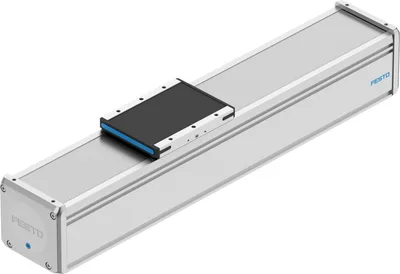

Festo ELFD-KF-120- -

Guide axis. For ball screw/toothed belt axes with recirculating ball bearing guide ELGD-BS-KF/ELGD-TB-KF (drive axes). Driveless linear guide unit with guide and freely movable slide unit. For supporting forces and torques in multi-axis applications. High torsional resistance. Reduced vibrations with dynamic loads

FestoMFR # ELFD-KF-120- -SKU # YLS7Y1S7GQ9XNRI

Working stroke50, 5000

Size120

Stroke reserve5.5

Mounting positionAny

GuideRecirculating ball bearing guide

DesignGuidance

Have questions?Chat on WhatsApp

About This Product

Festo ELFD-KF-120- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Working stroke50, 5000

Size120

Stroke reserve5.5

Mounting positionAny

GuideRecirculating ball bearing guide

DesignGuidance

Symbol00992984

Max. acceleration50, 100

Max. speed3, 10

Duty cycle100%

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 (with vacuum extraction), Class 6 according to ISO 14644-1

Storage temperature-20, 60

Degree of protectionIP40

Ambient temperature0, 60

Impact energy in end positions0.001

2nd moment of area Iy3550000

2nd moment of area Iz8985000

Max. force Fy4300, 8400

Max. force Fz4300, 8400

Max. moment Mx170, 350

Max. moment My50, 620

Max. moment Mz60, 580

Max. force Fy total axis2957, 5914

Max. force Fz total axis6500, 9000

Max. moment Mx total axis251, 520

Max. moment My total axis80, 674

Max. moment Mz total axis105, 527

Torsional mass moment of inertia It1433600

Displacement force12.5

Reference service life5000

Maintenance intervalLifetime lubrication

Fy at theoretical life value of 100 km (only guide consideration)17576, 35153

Fz at theoretical life value of 100 km (only guide consideration)17576, 35153

Mx at theoretical life value of 100 km (only guide consideration)730, 1459

My at theoretical life value of 100 km (only guide consideration)162, 1920

Mz at theoretical life value of 100 km (only guide consideration)162, 1920

Moving mass1519, 2820

Product weight4553, 101775

Basic weight for 0 mm stroke3993, 6575

Additional weight per 10 mm stroke112

Material end capAluminium gravity die-cast, painted

Material profileAnodised wrought aluminium alloy

Note on materialsRoHS compliant

Material cover tapeHigh-alloy stainless steel

Material coverAluminium gravity die-cast, painted

Material guide slideSteel

Material guide railSteel

Material slideWrought aluminium alloy
