How can I get a price quote for Festo ELFC-KF-60-1200?

You can request a fast quote for Festo ELFC-KF-60-1200 from Yılsa Engineering. Reference part number YLSUZQB3RNXLVP. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo ELFC-KF-60-1200 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo ELFC-KF-60-1200 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo ELFC-KF-60-1200?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

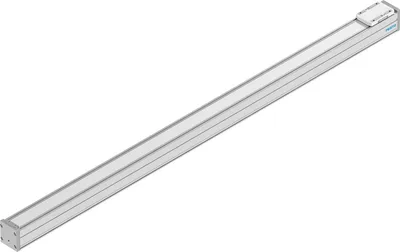

Festo ELFC-KF-60-1200

Guide axis. Toothed belt axes with recirculating ball bearing guide ELGA-BS-KF/ELGA-TB-KF (drive axes). Driveless linear guide unit with guide and freely movable slide unit. For supporting forces and torques in multi-axis applications. High torsional resistance. Reduced vibrations with dynamic loads

FestoMFR # ELFC-KF-60-1200SKU # YLSUZQB3RNXLVP

Working stroke1200

Size60

Mounting positionAny

GuideRecirculating ball bearing guide

DesignGuidance

Symbol00992984

Have questions?Chat on WhatsApp

About This Product

Festo ELFC-KF-60-1200

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Working stroke1200

Size60

Mounting positionAny

GuideRecirculating ball bearing guide

DesignGuidance

Symbol00992984

Position detectionVia proximity switch, For inductive sensors

Max. acceleration15

Max. speed1.5

Duty cycle100%

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1

Degree of protectionIP40

Ambient temperature0, 50

2nd moment of area Iy441000

2nd moment of area Iz542000

Max. force Fy3641

Max. force Fz3641

Max. moment Mx29.1

Max. moment My31.8

Max. moment Mz31.8

Max. force Fy total axis600

Max. force Fz total axis1800

Max. moment Mx total axis29.1

Max. moment My total axis31.8

Max. moment Mz total axis31.8

Torsional mass moment of inertia It29800

Displacement force6.75

Reference service life5000

Maintenance intervalLifetime lubrication

Fy at theoretical life value of 100 km (only guide consideration)13400

Fz at theoretical life value of 100 km (only guide consideration)13400

Mx at theoretical life value of 100 km (only guide consideration)107

My at theoretical life value of 100 km (only guide consideration)117

Mz at theoretical life value of 100 km (only guide consideration)117

Moving mass407

Basic weight for 0 mm stroke1029

Additional weight per 10 mm stroke43

Dynamic deflection (moving load)0.05% of the axis length, max. 0.5 mm

Static deflection (load in standstill)0.1% of the axis length

Material end capPainted die cast aluminium

Material profileAnodised wrought aluminium alloy

Note on materialsRoHS compliant

Material cover tapeHigh-alloy stainless steel

Material guide slideSteel

Material guide railSteel

Material slideDie-cast aluminium

Accessories 15

Genuine accessories that can be used with the Festo ELFC-KF-60-1200 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
EAHF-L2-45-P-D3	Profile mounting · Cylinder mountings
EAPM-L2-SH	Sensor bracket · Mounting accessories
EAHF-L2-45-P	Profile mounting · Cylinder mountings
EAHF-L2-45-P-S	Profile mounting · Cylinder mountings
EADT-S-L5-70	Clamping element · Mounting accessories
EHAA-D-L2-60-L2-60	Adapter kit · Cylinder mountings
EHAA-D-L2-60-L2-45-AP	Angle kit · Cylinder mountings
EAPM-L2-60-SLS	Switch lug · Mounting accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
ZBH-5-M4	Centring sleeve · Mounting accessories
ZBH-5-B	Centring sleeve · Mounting accessories
ZBH-5	Centring sleeve · Mounting accessories
