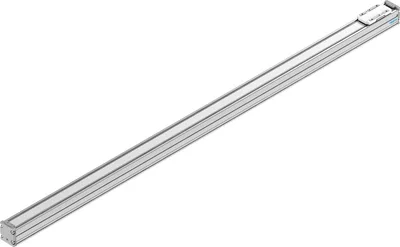

Festo ELFC-KF-32-800

Guide axis. Toothed belt axes with recirculating ball bearing guide ELGA-BS-KF/ELGA-TB-KF (drive axes). Driveless linear guide unit with guide and freely movable slide unit. For supporting forces and torques in multi-axis applications. High torsional resistance. Reduced vibrations with dynamic loads

FestoMFR # ELFC-KF-32-800SKU # YLSKX3QQNPAASE

Working stroke800

Size32

Mounting positionAny

GuideRecirculating ball bearing guide

DesignGuidance

Symbol00992984

Have questions?Chat on WhatsApp

About This Product

Festo ELFC-KF-32-800

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Working stroke800

Size32

Mounting positionAny

GuideRecirculating ball bearing guide

DesignGuidance

Symbol00992984

Position detectionVia proximity switch, For inductive sensors

Max. acceleration15

Max. speed1.5

Duty cycle100%

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1

Degree of protectionIP40

Ambient temperature0, 50

2nd moment of area Iy38000

2nd moment of area Iz45000

Max. force Fy356

Max. force Fz356

Max. moment Mx1.3

Max. moment My1.1

Max. moment Mz1.1

Max. force Fy total axis150

Max. force Fz total axis300

Max. moment Mx total axis1.3

Max. moment My total axis1.1

Max. moment Mz total axis1.1

Torsional mass moment of inertia It1770

Displacement force2

Reference service life5000

Maintenance intervalLifetime lubrication

Fy at theoretical life value of 100 km (only guide consideration)1310

Fz at theoretical life value of 100 km (only guide consideration)1310

Mx at theoretical life value of 100 km (only guide consideration)5

My at theoretical life value of 100 km (only guide consideration)4

Mz at theoretical life value of 100 km (only guide consideration)4

Moving mass61

Basic weight for 0 mm stroke168

Additional weight per 10 mm stroke11

Dynamic deflection (moving load)0.05% of the axis length, max. 0.5 mm

Static deflection (load in standstill)0.1% of the axis length

Material end capPainted die cast aluminium

Material profileAnodised wrought aluminium alloy

Note on materialsRoHS compliant

Material cover tapeHigh-alloy stainless steel

Material guide slideSteel

Material guide railSteel

Material slideDie-cast aluminium

Accessories 13

Genuine accessories that can be used with the Festo ELFC-KF-32-800 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
ZBS-2	Centring pin · Mounting accessories
EAHF-L2-25-P-D1	Profile mounting · Cylinder mountings
EAPM-L2-SH	Sensor bracket · Mounting accessories
EAHF-L2-25-P	Profile mounting · Cylinder mountings
EAHF-L2-25-P-S	Profile mounting · Cylinder mountings
EADT-S-L5-32	Clamping element · Mounting accessories
EHAA-D-L2-32-L2-32	Adapter kit · Cylinder mountings
EHAA-D-L2-32-L2-25-AP	Angle kit · Cylinder mountings
EAPM-L2-32-SLS	Switch lug · Mounting accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
