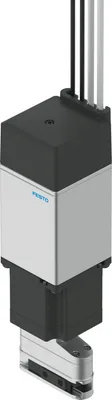

Festo EHMD-50-RE-GE-15

Rotary gripper module. Ideal for small objects in laboratory automation. Infinite electrical rotation and electrical or pneumatic gripping. Gripping and turning to open and close covers on vials. Optional: mounting with Z-compensation compensates for the thread pitch of covers on vials during opening and closing. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EHMD-50-RE-GE-15SKU # YLSHGTIOFIYM53

Size50

Rotation angleInfinite

Stroke per gripper jaws15

Reversing backlash theoretical800

Stepper angle for complete step1.8

Step angle full step, rotation1.8

Have questions?Chat on WhatsApp

About This Product

Festo EHMD-50-RE-GE-15

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size50

Rotation angleInfinite

Stroke per gripper jaws15

Controllable stroke range per gripper jaw0, 15

Reversing backlash theoretical800

Stepper angle for complete step1.8

Step angle full step, rotation1.8

Stepping angle tolerance±5%

Step angle tolerance, rotation±5%

Number of gripper jaws2

Mounting positionAny

DesignElectric rotary drive, Electric gripper drive

Mode of operationElectric parallel gripper

Operating mode, rotationHybrid stepper motor

Gear unit ratio1:1

Position detectionTurning: Motor encoder, Gripping: Motor encoder

Gripper functionParallel

Type of motorStepper motor

ReferencingTurning: Encoder index, Gripping: Fixed-stop block

Rotor position sensorIncremental encoder

Rotor position encoder interfaceRS422 TTL AB channels + zero index

Rotor position sensor, encoder measuring principleOptical

Max. drive output speed240

Max. speed0.025

Max. homing speed0.005

Max. positioning speed per gripper jaw25

Max. gripping speed per gripper jaw10

Duty cycle100%

Insulation protection classB

Max. current consumption60

Max. current consumption, rotation60

Nominal operating voltage DC24

Nominal operating voltage DC, rotation5

Nominal voltage DC24

Phase winding inductance2.8

Winding inductance phase, rotation2.3

Phase winding resistance2

Winding resistance phase, rotation0.83

Pulses per revolution500

Pulses per revolution, rotation500

Nominal current per phase0.5

Nominal current per phase, rotation2.8

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-20, 70

Relative air humidityNon-condensing

Degree of protectionIP20

Ambient temperature18, 28

Gripping force per gripper jaw18, 67

Gripping force at 25% nominal current12, 22

Gripping force at nominal current61, 71

Motor holding torque0.115

Holding torque motor, rotation1

Mass moment of inertia0.038

Mass moment of inertia, rotation0.51

Max. output torque1

Max. force on gripper jaw Fz static15

Max. torque at gripper Mx static3.5

Max. torque at gripper My static5

Max. torque at gripper Mz static5

Rated load0.5

Feed constant2.3

Permissible axial shaft load15

Permissible radial shaft load0

Product weight1255

Electrical connection 1, function2x motor

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemPTSM

Electrical connection 1, number of connections/cores8

Electrical connection 1, connection pattern00997539

Electrical connection 2, function2x encoder

Electrical connection 2, connection typePlug

Electrical connection 2, connector systemJST-ZH

Electrical connection 2, number of connections/cores16

Electrical connection 2, connection pattern00997540

Type of mountingVia dovetail slot

Note on materialsRoHS compliant

Material coverReinforced PA

Material housingAnodised wrought aluminium alloy
