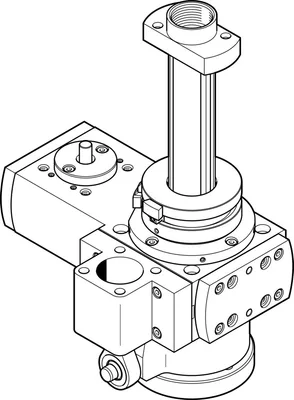

FESTO EHMB-25-100

Rotary lifting module. Complete module with combined and configurable rotary/lifting movement. Dynamic, flexible, economical thanks to the modular drive concept for the linear movement. Hollow axis with large internal diameter makes laying power supply lines easy, convenient and safe. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FESTOMFR # EHMB-25-100SKU # CEY-937FC781BB7C

Drive pinion diameter8

Working stroke0, 100

Size25

Rotation angleInfinite

Toothed-belt pitch3

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

FESTO EHMB-25-100

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Drive pinion diameter8

Working stroke0, 100

Size25

Rotation angleInfinite

Toothed-belt pitch3

Mounting positionAny

Type of gear unitToothed belt drive

DesignWith toothed belt

Gear unit ratio4:1

Position detectionFor inductive sensors

Max. drive output speed300

Max. drive input speed1200

Max. speed1.5

Repetition accuracy±0.03 °

Sound pressure level51

Information on the sound pressure levelWith covering: 56 [dB (A)]

LABS (PWIS) conformityVDMA24364 zone III

Ambient temperature-10, 60

Mass moment of inertia5000

Max. output torque8.8

Max. drive torque2.2

Max. feed force Fx480

Frictional torque independent of load0.18

Reference value effective load, horizontal5

Reference value effective load, vertical5

Product weight3347

Moving mass1542

Material drive shaftSteel

Note on materialsRoHS compliant

Material flangeAnodised wrought aluminium alloy

Material drive shaftHigh-alloy stainless steel

Material coverWrought aluminium alloy, anodised

Material housinganodised

Material retainingWrought aluminium alloy, anodised

Material retaining bracketAnodised wrought aluminium alloy

Material toothed beltPolychloroprene with glass fibre

Accessories 41

Genuine accessories that can be used with the FESTO EHMB-25-100 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
EAMM-A-D40-87A-S1	Axial kit · Mounting accessories
EAMF-A-44A/B-55A	Motor flange · Mounting accessories
EAMF-A-44A/B-57A	Motor flange · Mounting accessories
EAMM-A-D40-55A	Axial kit · Mounting accessories
EAMM-A-D40-57A	Axial kit · Mounting accessories
EAMC-30-32-6.35-8	Coupling · Mounting accessories
EAMC-30-32-8-8	Coupling · Mounting accessories
EAMC-30-32-8-9	Coupling · Mounting accessories
EMGA-40-P-G3-SST-42	Gear unit · Mounting accessories
EMGA-40-P-G5-SST-42	Gear unit · Mounting accessories
EAMM-A-D40-70A	Axial kit · Mounting accessories
EAMM-A-D40-87A	Axial kit · Mounting accessories
EAMF-A-44A/B-40G	Motor flange · Mounting accessories
EAMC-30-32-8-11	Coupling · Mounting accessories
EAMK-A-D40-44A/C	Coupling housing · Mounting accessories
EAMC-30-32-8-10	Coupling · Mounting accessories
EAMC-30-32-8-14	Coupling · Mounting accessories
EAMM-A-D40-55A-S1	Axial kit · Mounting accessories
EAMM-A-D40-57A-S1	Axial kit · Mounting accessories
EAMM-A-D40-70A-S1	Axial kit · Mounting accessories
EAMM-A-D40-60H	Axial kit · Mounting accessories
EAMM-U-50-D32-32B-78	Parallel kit · Mounting accessories
EAMM-A-D40-40G-G2	Axial kit · Mounting accessories
EAMM-A-D40-40G-S1	Axial kit · Mounting accessories
EAMM-A-D40-60G	Axial kit · Mounting accessories
EAMM-A-D40-60H-S1	Axial kit · Mounting accessories
EAMM-A-D40-60G-S1	Axial kit · Mounting accessories
EMGA-40-P-G3-EAS-40	Gear unit · Mounting accessories
EMGA-40-P-G5-EAS-40	Gear unit · Mounting accessories
EAMM-A-D40-58AA	Axial kit · Mounting accessories
EAMM-A-D40-60AA	Axial kit · Mounting accessories
EAMM-A-D40-70AA	Axial kit · Mounting accessories
EAMM-A-D40-50GA	Axial kit · Mounting accessories
EAMM-A-D40-60RA	Axial kit · Mounting accessories
EAMM-A-D40-60R	Axial kit · Mounting accessories
EMGA-40-P-G8-EAS-40	Gear unit · Mounting accessories
EMGA-40-P-G12-EAS-40	Gear unit · Mounting accessories
EMGA-40-P-G20-EAS-40	Gear unit · Mounting accessories
EMGA-40-P-G8-SST-42	Gear unit · Mounting accessories
EMGA-40-P-G12-SST-42	Gear unit · Mounting accessories
EAMM-A-D40-60P-G2	Axial kit · Mounting accessories
