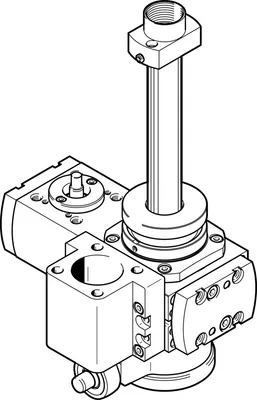

FESTO EHMB-20-100

Rotary lifting module. Complete module with combined and configurable rotary/lifting movement. Dynamic, flexible, economical thanks to the modular drive concept for the linear movement. Hollow axis with large internal diameter makes laying power supply lines easy, convenient and safe. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FESTOMFR # EHMB-20-100SKU # CEY-937FC781BB73

Drive pinion diameter6

Working stroke0, 100

Size20

Rotation angleInfinite

Toothed-belt pitch2

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

FESTO EHMB-20-100

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Drive pinion diameter6

Working stroke0, 100

Size20

Rotation angleInfinite

Toothed-belt pitch2

Mounting positionAny

Type of gear unitToothed belt drive

DesignWith toothed belt

Gear unit ratio4.5:1

Position detectionFor inductive sensors

Max. drive output speed300

Max. drive input speed1350

Max. speed1.5

Repetition accuracy±0.03 °

Sound pressure level54

Information on the sound pressure levelWith covering: 57 [dB (A)]

LABS (PWIS) conformityVDMA24364 zone III

Ambient temperature-10, 60

Mass moment of inertia1000

Max. output torque3.15

Max. drive torque0.7

Max. feed force Fx480

Frictional torque independent of load0.07

Reference value effective load, horizontal3

Reference value effective load, vertical3

Product weight1716

Moving mass705

Material drive shaftSteel

Note on materialsRoHS compliant

Material flangeAnodised wrought aluminium alloy

Material drive shaftHigh-alloy stainless steel

Material coverWrought aluminium alloy, anodised

Material housinganodised

Material retainingWrought aluminium alloy, anodised

Material retaining bracketAnodised wrought aluminium alloy

Material toothed beltPolychloroprene with glass fibre

Accessories 41

Genuine accessories that can be used with the FESTO EHMB-20-100 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
EAMF-A-44A/B-57A	Motor flange · Mounting accessories
EAMC-30-32-6-8	Coupling · Mounting accessories
EAMM-A-D32-40A	Axial kit · Mounting accessories
EAMM-A-D32-42A	Axial kit · Mounting accessories
EAMC-16-20-5-6	Coupling · Mounting accessories
EAMC-16-20-6-6	Coupling · Mounting accessories
EAMM-A-D32-55A	Axial kit · Mounting accessories
EAMM-A-D32-57A	Axial kit · Mounting accessories
EAMC-30-32-6-6.35	Coupling · Mounting accessories
EAMK-A-D32-44A/C	Coupling housing · Mounting accessories
EAMK-A-D32-28B	Coupling housing · Mounting accessories
EAMF-A-28B-42A	Motor flange · Mounting accessories
EAMC-30-32-6-6	Coupling · Mounting accessories
EAMK-A-D32-35A-40A	Coupling housing · Mounting accessories
EAMM-A-D32-35A-40A	Axial kit · Mounting accessories
EASA-H1-20-PG16	Protective conduit fitting · Mounting accessories
EAMM-A-D32-40A-S1	Axial kit · Mounting accessories
EAMM-A-D32-42A-S1	Axial kit · Mounting accessories
EAMM-A-D32-55A-S1	Axial kit · Mounting accessories
EAMM-A-D32-57A-S1	Axial kit · Mounting accessories
EAMM-A-D32-40G	Axial kit · Mounting accessories
EAMM-U-50-D32-32B-78	Parallel kit · Mounting accessories
EAMM-A-D32-35A-40P	Axial kit · Mounting accessories
EAMK-A-D32-35A-40P	Coupling housing · Mounting accessories
EAMM-A-D32-40G-S1	Axial kit · Mounting accessories
DHAA-G-Q5-20-B13-35	Adapter kit · Mounting accessories
DHAA-G-Q5-25-B13-40	Adapter kit · Mounting accessories
DHAA-G-H2-20-B13-50	Adapter kit · Mounting accessories
DHAA-G-H2-20-B13G-50	Adapter kit · Mounting accessories
EAMM-A-D32-60G	Axial kit · Mounting accessories
EAMM-A-D32-60G-S1	Axial kit · Mounting accessories
EAMM-A-D32-60H	Axial kit · Mounting accessories
EAMM-A-D32-60H-S1	Axial kit · Mounting accessories
EAMM-A-D32-40R	Axial kit · Mounting accessories
EAMM-A-D32-58AA	Axial kit · Mounting accessories
EAMM-A-D32-60AA	Axial kit · Mounting accessories
EAMM-A-D32-60RA	Axial kit · Mounting accessories
EAMM-A-D32-60R	Axial kit · Mounting accessories
EAMM-A-D32-50GA	Axial kit · Mounting accessories
EAMM-A-D32-40RA	Axial kit · Mounting accessories
EAMM-A-D32-60P-G2	Axial kit · Mounting accessories
