How can I get a price quote for FESTO EB-250-185?

You can request a fast quote for FESTO EB-250-185 from Yılsa Engineering. Reference part number CEY-937FC7826709. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO EB-250-185 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO EB-250-185 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO EB-250-185?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

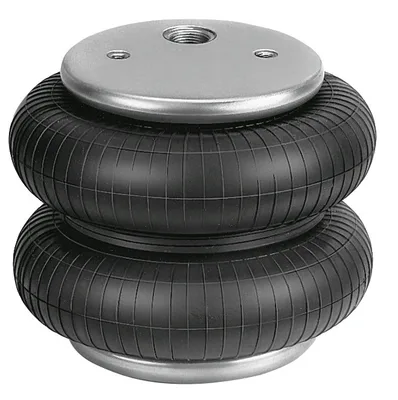

FESTO EB-250-185

Bellows cylinder. Use as a spring element or for reducing oscillations. Single- or double-bellows cylinder. High forces with a short stroke. Friction-free movement: no stick-slip effect. Use in dusty environments or in water. Maintenance-free

FESTOMFR # EB-250-185SKU # CEY-937FC7826709

Size250

Required installation diameter265

Stroke185

Max. extended height275

Max. angle of inclination25

Max. offset20

Have questions?Chat on WhatsApp

About This Product

FESTO EB-250-185

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size250

Required installation diameter265

Stroke185

Max. extended height275

Max. angle of inclination25

Max. offset20

Min. installation height75

Mounting positionAny

Mode of operationSingle-acting

Symbol00991205

Operating pressure0, 0.8

Operating pressure0, 8

Operating pressure0, 116

Operating mediumCompressed air to ISO 8573-1:2010 [-:-:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-40, 70

Reset force200

Product weight3000

Type of mountingWith female thread

Pneumatic connectionG3/4

Note on materialsRoHS compliant

Material bellowsNR/BR

Material housingSteel, Galvanised

Accessories 10

Genuine accessories that can be used with the FESTO EB-250-185 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-G1/2-16	Push-in fitting · Fittings
PUN-H-16X2,5-NT	Plastic tubing · Tubes
NPFC-R-G34-G12-MF	Reducing nipple · Fittings
PUN-H-16X2,5-BL	Plastic tubing · Tubes
PUN-H-16X2,5-SW	Plastic tubing · Tubes
N-3/4-P-13	Barbed hose fitting · Other connectors
N-3/4-P-19	Barbed hose fitting · Other connectors
N-3/4-P-13-MS	Barbed hose fitting · Other connectors
N-3/4-P-19-MS	Barbed hose fitting · Other connectors
QS-G3/4-22	Push-in fitting · Push-in fittings
