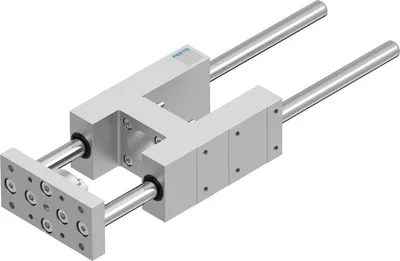

Festo EAGF-V2-KF-40-200
Guide unit. For electric cylinders EPCC, EPCO and ESBF. For absorbing high process forces and torques. High guide precision
Size40
Stroke200
Reversing backlash theoretical0
Mounting positionAny
GuideRecirculating ball bearing guide
DesignGuidance
About This Product
Guide unit. For electric cylinders EPCC, EPCO and ESBF. For absorbing high process forces and torques. High guide precision
Festo EAGF-V2-KF-40-200
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size40
Stroke200
Reversing backlash theoretical0
Mounting positionAny
GuideRecirculating ball bearing guide
DesignGuidance
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Ambient temperature-20, 80
Max. force Fy1000
Max. force Fy static1260
Max. force Fz1000
Max. force Fz static1260
Max. moment Mx44
Max. torque Mx static55
Max. moment My52
Max. torque My static65
Max. moment Mz52
Max. torque Mz static65
Displacement force15
Moving mass1923
Product weight3157
Centre of gravity at 0 mm stroke38
Centre of gravity additional of moving mass per 10 mm4.2
Type of mountingWith female thread
Note on materialsRoHS compliant
Material guide componentTempered steel
Material housinganodised
Material yoke plateSteel
