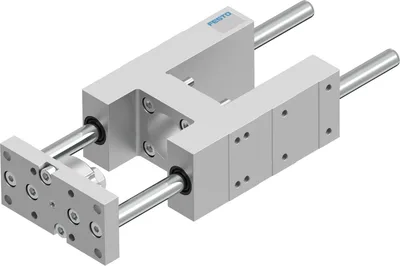

Festo EAGF-V2-KF-32-100
Guide unit. For electric cylinders EPCC, EPCO and ESBF. For absorbing high process forces and torques. High guide precision
Size32
Stroke100
Reversing backlash theoretical0
Mounting positionAny
GuideRecirculating ball bearing guide
DesignGuidance
About This Product
Guide unit. For electric cylinders EPCC, EPCO and ESBF. For absorbing high process forces and torques. High guide precision
Festo EAGF-V2-KF-32-100
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size32
Stroke100
Reversing backlash theoretical0
Mounting positionAny
GuideRecirculating ball bearing guide
DesignGuidance
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Ambient temperature-20, 80
Max. force Fy750
Max. force Fy static1020
Max. force Fz750
Max. force Fz static1020
Max. moment Mx28
Max. torque Mx static38
Max. moment My34
Max. torque My static46
Max. moment Mz34
Max. torque Mz static46
Displacement force15
Moving mass904
Product weight1865
Centre of gravity at 0 mm stroke30
Centre of gravity additional of moving mass per 10 mm4.1
Type of mountingWith female thread
Note on materialsRoHS compliant
Material guide componentTempered steel
Material housinganodised
Material yoke plateSteel
