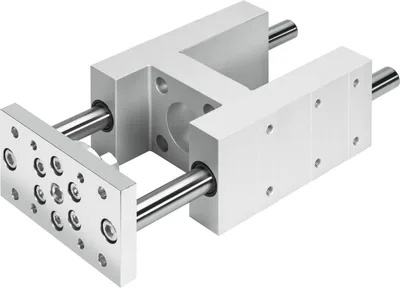

FESTO EAGF-V2-KF-100-320
Guide unit. For electric cylinders EPCC, EPCO and ESBF. For absorbing high process forces and torques. High guide precision
Size100
Stroke320
Reversing backlash theoretical0
Mounting positionAny
GuideRecirculating ball bearing guide
DesignGuidance
About This Product
Guide unit. For electric cylinders EPCC, EPCO and ESBF. For absorbing high process forces and torques. High guide precision
FESTO EAGF-V2-KF-100-320
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size100
Stroke320
Reversing backlash theoretical0
Mounting positionAny
GuideRecirculating ball bearing guide
DesignGuidance
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Ambient temperature-20, 80
Max. force Fy2300
Max. force Fy static3120
Max. force Fz2300
Max. force Fz static3120
Max. moment Mx198
Max. torque Mx static268
Max. moment My197
Max. torque My static267
Max. moment Mz197
Max. torque Mz static267
Displacement force40
Moving mass8586
Product weight15695
Centre of gravity at 0 mm stroke47
Centre of gravity additional of moving mass per 10 mm3.6
Type of mountingWith female thread
Note on materialsRoHS compliant
Material guide componentTempered steel
Material housinganodised
Material yoke plateSteel
