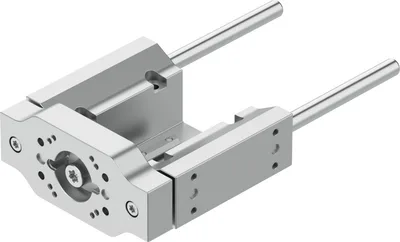

Festo EAGF-P2-KF-60-
Guide unit. For electric cylinders EPCC, EPCO and ESBF. For absorbing high process forces and torques. High guide precision
Size60
Stroke1, 500
Reversing backlash theoretical0
Mounting positionAny
GuideRecirculating ball bearing guide
DesignGuidance
About This Product
Guide unit. For electric cylinders EPCC, EPCO and ESBF. For absorbing high process forces and torques. High guide precision
Festo EAGF-P2-KF-60-
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size60
Stroke1, 500
Reversing backlash theoretical0
Mounting positionAny
GuideRecirculating ball bearing guide
DesignGuidance
Max. acceleration25
Max. speed1
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Degree of protectionIP40
Ambient temperature0, 60
Max. force Fy380
Max. force Fy static510
Max. force Fz380
Max. force Fz static510
Max. moment Mx20
Max. torque Mx static27
Max. moment My15
Max. torque My static20
Max. moment Mz15
Max. torque Mz static20
Displacement force3
Moving mass for 0 mm stroke583
Basic weight for 0 mm stroke1614
Additional weight per 10 mm stroke17.8
Additional moving mass per 10 mm stroke17.8
Centre of gravity at 0 mm stroke31
Centre of gravity additional of moving mass per 10 mm4.3
Type of mountingWith female thread
Note on materialsRoHS compliant
Material guide componentTempered steel, Hard chrome-plated
Material housinganodised
Material yoke plateWrought aluminium alloy, anodised
