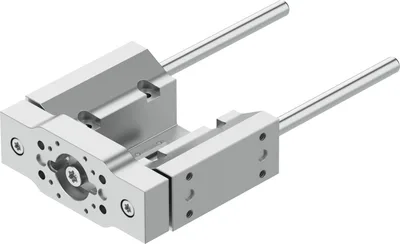

Festo EAGF-P2-KF-45-50
Guide unit. For electric cylinders EPCC, EPCO and ESBF. For absorbing high process forces and torques. High guide precision
Size45
Stroke50
Reversing backlash theoretical0
Mounting positionAny
GuideRecirculating ball bearing guide
DesignGuidance
About This Product
Guide unit. For electric cylinders EPCC, EPCO and ESBF. For absorbing high process forces and torques. High guide precision
Festo EAGF-P2-KF-45-50
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size45
Stroke50
Reversing backlash theoretical0
Mounting positionAny
GuideRecirculating ball bearing guide
DesignGuidance
Max. acceleration25
Max. speed1
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Degree of protectionIP40
Ambient temperature0, 60
Max. force Fy320
Max. force Fy static415
Max. force Fz320
Max. force Fz static415
Max. moment Mx15
Max. torque Mx static19
Max. moment My10
Max. torque My static12
Max. moment Mz10
Max. torque Mz static12
Displacement force2
Moving mass for 0 mm stroke342
Basic weight for 0 mm stroke1037
Additional weight per 10 mm stroke12.3
Additional moving mass per 10 mm stroke12.3
Centre of gravity at 0 mm stroke25
Centre of gravity additional of moving mass per 10 mm4.3
Type of mountingWith female thread
Note on materialsRoHS compliant
Material guide componentTempered steel, Hard chrome-plated
Material housinganodised
Material yoke plateWrought aluminium alloy, anodised
