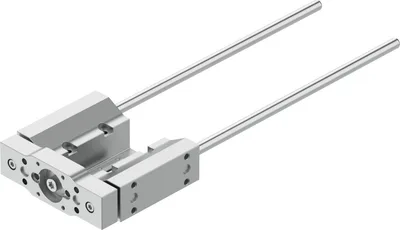

Festo EAGF-P2-KF-32-200
Guide unit. For electric cylinders EPCC, EPCO and ESBF. For absorbing high process forces and torques. High guide precision
Size32
Stroke200
Reversing backlash theoretical0
Mounting positionAny
GuideRecirculating ball bearing guide
DesignGuidance
About This Product
Guide unit. For electric cylinders EPCC, EPCO and ESBF. For absorbing high process forces and torques. High guide precision
Festo EAGF-P2-KF-32-200
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size32
Stroke200
Reversing backlash theoretical0
Mounting positionAny
GuideRecirculating ball bearing guide
DesignGuidance
Max. acceleration25
Max. speed1
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Degree of protectionIP40
Ambient temperature0, 60
Max. force Fy160
Max. force Fy static355
Max. force Fz160
Max. force Fz static355
Max. moment Mx6
Max. torque Mx static13
Max. moment My4
Max. torque My static9
Max. moment Mz4
Max. torque Mz static9
Displacement force1.6
Moving mass for 0 mm stroke170
Basic weight for 0 mm stroke613
Additional weight per 10 mm stroke7.9
Additional moving mass per 10 mm stroke7.9
Centre of gravity at 0 mm stroke26
Centre of gravity additional of moving mass per 10 mm4.3
Type of mountingWith female thread
Note on materialsRoHS compliant
Material guide componentTempered steel, Hard chrome-plated
Material housinganodised
Material yoke plateWrought aluminium alloy, anodised
