How can I get a price quote for FESTO EADB-V2-63-S201-300?

You can request a fast quote for FESTO EADB-V2-63-S201-300 from Yılsa Engineering. Reference part number CEY-937FC781B5EE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO EADB-V2-63-S201-300 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO EADB-V2-63-S201-300 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO EADB-V2-63-S201-300?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

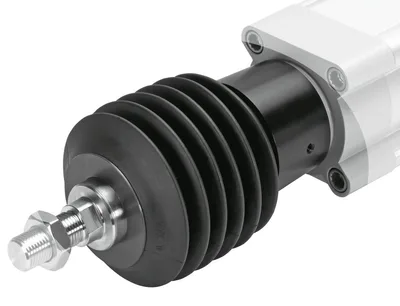

FESTO EADB-V2-63-S201-300

Bellows kit

FESTOMFR # EADB-V2-63-S201-300SKU # CEY-937FC781B5EE

Outside diameter93

Size63

Stroke range201, 300

Piston rod extension80

DesignRound

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

FESTO EADB-V2-63-S201-300 (Bellows kit) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO EADB-V2-63-S201-300 — price, stock availability and technical specifications.

FESTO EADB-V2-63-S201-300

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Outside diameter93

Size63

Stroke range201, 300

Piston rod extension80

DesignRound

Mounting positionAny

DesignProtective bellows kit, With ducted exhaust air

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Media resistanceDust, Chippings, Oils, Grease, Petrol

Degree of protectionIP65, To IEC 60529

Ambient temperature-10, 80

Moving mass183

Product weight307

Type of mountingPush-on, Via threaded pin

Pneumatic connectionG1/4

Note on materialsRoHS compliant

Material adapter componentsWrought aluminium alloy, anodised

Material sealsNBR

Material bellowsNBR

Material threaded pinHigh-alloy stainless steel

Accessories 11

Genuine accessories that can be used with the FESTO EADB-V2-63-S201-300 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
U-1/4	Silencer · Silencer
U-1/4-B	Silencer · Silencer
QSH-16-12	Push-in sleeve · Push-in fittings
UC-1/4	Silencer · Silencer
QS-G1/4-12	Push-in fitting · Push-in fittings
UO-1/4	Silencer · Silencer
UC-1/4-20	Silencer · Silencer
U-1/4-20	Silencer · Silencer
UOM-1/4	Silencer · Silencer
AMTE-M-LH-G14	Silencer · Silencer
AMTE-M-H-G14	Silencer · Silencer
