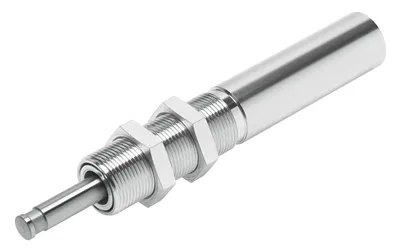

FESTO DYSR-12-12-Y5

Shock absorber. Hydraulic shock absorber with spring return. Adjustable cushioning hardness

FESTOMFR # DYSR-12-12-Y5SKU # CEY-937FC781BB47

Size12

Stroke12

CushioningAdjustable

Mounting positionAny

Position detectionNone

Symbol00995984

Have questions?Chat on WhatsApp

About This Product

Shock absorber. Hydraulic shock absorber with spring return. Adjustable cushioning hardness

FESTO DYSR-12-12-Y5

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size12

Stroke12

CushioningAdjustable

Mounting positionAny

Position detectionNone

Symbol00995984

Max. impact speed3

Reset time at room temperature0.2

Reset time at min. ambient temperature1

Mode of operationPushing, Single-acting

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-10, 80

Cushioning length12

Max. stop force900

Max. energy consumption per stroke10.8

Max. energy consumption per hour60000

Max. residual energy0.05

Reset force4.5

Min. insertion force38

Product weight105

Load range90

Type of mountingVia lock nut

Note on materialsRoHS compliant

Material sealsNBR

Material housingGalvanised steel

Material piston rodHigh-alloy steel
