How can I get a price quote for FESTO DYHR-16-20-Y5?

You can request a fast quote for FESTO DYHR-16-20-Y5 from Yılsa Engineering. Reference part number CEY-937FC781B778. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO DYHR-16-20-Y5 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO DYHR-16-20-Y5 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO DYHR-16-20-Y5?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

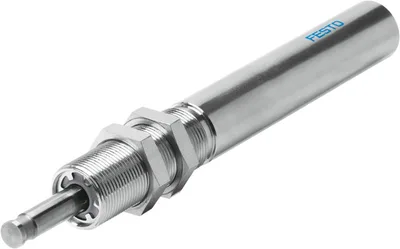

FESTO DYHR-16-20-Y5

Hydraulic cushioning cylinder. Hydraulic cushioning cylinder for constant, slow braking speeds across the entire stroke. Braking speed can be precisely adjusted. A built-in compression spring returns the piston rod to the initial position. Suitable for slow feed speeds in the range up to 0.1 m/s

FESTOMFR # DYHR-16-20-Y5SKU # CEY-937FC781B778

Size16

Stroke20

CushioningAdjustable

Mounting positionAny

Mode of operationPushing, Single-acting

Position detectionNone

Have questions?Chat on WhatsApp

About This Product

FESTO DYHR-16-20-Y5

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size16

Stroke20

CushioningAdjustable

Mounting positionAny

Mode of operationPushing, Single-acting

Position detectionNone

Max. impact speed0.3

Feed speed0.2, 100

Reset time at room temperature0.4

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature0, 80

Max. stop force1600

Max. energy consumption per stroke32

Max. energy consumption per hour65000

Min. feed force160

Max. feed force1600

Max. residual energy0.16

Reset force5.4

Product weight190

Type of mountingVia lock nut

Note on materialsRoHS compliant

Material sealsNBR

Material housingSteel, Galvanised

Material piston rodhardened, High-alloy steel

Accessories 2

Genuine accessories that can be used with the FESTO DYHR-16-20-Y5 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
