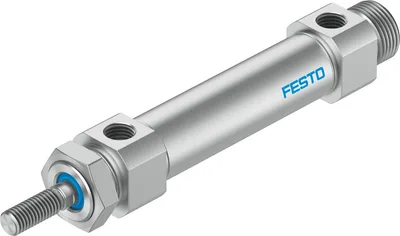

Festo DSNU-S-20- -F1A-

Round cylinder. Short variant of ISO cylinder DSNU. Quick and easy installation, even in tight spaces. Light weight. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. Piston rod with male thread. For position sensing. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable in production thanks to reduced use of materials

FestoMFR # DSNU-S-20- -F1A-SKU # YLSWSTABRQPOJET

Stroke1, 200

Piston diameter20 mm

Mounting positionAny

DesignPiston, Piston rod, Cylinder barrel

Position detectionVia proximity switch

Symbol00991217

Have questions?Chat on WhatsApp

About This Product

Festo DSNU-S-20- -F1A-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke1, 200

Piston diameter20 mm

CushioningElastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning

Mounting positionAny

DesignPiston, Piston rod, Cylinder barrel

Position detectionVia proximity switch

Symbol00991217

VariantsExtended male piston rod thread, Piston rod with female thread, Extended piston rod, Axial supply port, Swivel mounting, end cap, Lateral supply port, Mounting thread, end cap, Shortened male piston r

Operating pressure0.08, 1

Operating pressure0.8, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Ambient temperature-20, 80

Impact energy in end positions0.2

Cushioning length15

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke158.3

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke188.5

Moving mass for 0 mm stroke37.3

Additional moving mass per 10 mm stroke4

Basic weight for 0 mm stroke126

Additional weight per 10 mm stroke7.2

Type of mountingWith accessories

Pneumatic connectionG1/8

Note on materialsRoHS compliant

Material coverAnodised wrought aluminium alloy

Material sealsTPE-U(PU)

Material piston rodHigh-alloy stainless steel

Material cylinder barrelHigh-alloy stainless steel

Accessories 25

Genuine accessories that can be used with the Festo DSNU-S-20- -F1A- motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMBR-8-20	Mounting kit · Retainer for proximity sensor
PUN-H-6X1-NT	Plastic tubing · Tubes
PUN-H-6X1-BL	Plastic tubing · Tubes
PUN-H-6X1-SW	Plastic tubing · Tubes
PUN-H-6X1-TBL	Plastic tubing · Tubes
VFOE-LE-T-R18-Q6-F1A	One-way flow control valve · Function fittings
NPQE-DK-G18-Q6-F1A-P10	Push-in fitting · Fittings
NPQE-L-R18-Q6-F1A-P10	Push-in fitting · Fittings
CRSG-M8	Rod clevis · Piston-rod attachments
CRSGS-M8	Rod eye · Piston-rod attachments
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
HBN-S-20/25X2-F1A	Foot mounting · Cylinder mountings
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
VFOE-LE-T-G18-Q4-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q8-F1A	One-way flow control valve · Function fittings
NPQE-DK-G18-Q4-F1A-P10	Push-in fitting · Push-in fittings
NPQE-DK-G18-Q8-F1A-P10	Push-in fitting · Push-in fittings
NPQE-DK-G18-Q10-F1A-P10	Push-in fitting · Push-in fittings
HBN-S-20/25X1-F1A	Foot mounting · Cylinder mountings
