How can I get a price quote for Festo DSNU-32- -F1A-?

You can request a fast quote for Festo DSNU-32- -F1A- from Yılsa Engineering. Reference part number YLSLTDLOGERVMB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DSNU-32- -F1A- in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DSNU-32- -F1A- genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DSNU-32- -F1A-?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

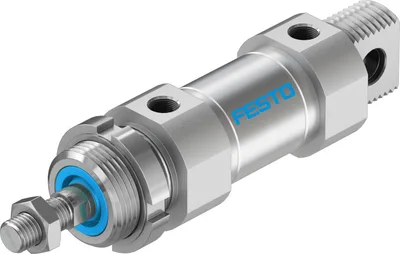

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo DSNU-32- -F1A-

Round cylinder. Wide range of variants for customised applications. Good running performance and long service life. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. Piston rod with female or male thread. For position sensing

FestoMFR # DSNU-32- -F1A-SKU # YLSLTDLOGERVMB

Stroke1, 500

Piston diameter32 mm

Piston rod threadM10x1.25

Mounting positionAny

DesignPiston, Piston rod, Cylinder barrel

Position detectionVia proximity switch

Have questions?Chat on WhatsApp

About This Product

Festo DSNU-32- -F1A-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke1, 500

Piston diameter32 mm

Piston rod threadM10x1.25

CushioningElastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends

Mounting positionAny

DesignPiston, Piston rod, Cylinder barrel

Position detectionVia proximity switch

Symbol00991217

VariantsAdvancing stroke adjustment, Weld spatter protection, Extended male piston rod thread, Piston rod with female thread, Custom thread on the piston rod, Piston rod with external hexagon, Low friction fo

Operating pressure0.1, 1

Operating pressure1, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Ambient temperature-20, 80

Impact energy in end positions0.4

Cushioning length14

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke415

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke482.5

Moving mass for 0 mm stroke121

Additional moving mass per 10 mm stroke9

Basic weight for 0 mm stroke370.5

Additional weight per 10 mm stroke15.5

Type of mountingWith accessories

Pneumatic connectionG1/8

Note on materialsRoHS compliant

Material coverAnodised wrought aluminium alloy

Material sealsTPE-U(PU)

Material piston rodHigh-alloy stainless steel

Material cylinder barrelHigh-alloy stainless steel

Accessories 26

Genuine accessories that can be used with the Festo DSNU-32- -F1A- motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMBR-8-32	Mounting kit · Retainer for proximity sensor
CRH-32	Foot mounting · Cylinder mountings
CRLBN-32	Clevis foot · Cylinder mountings
VFOE-LE-T-R18-Q6-F1A	One-way flow control valve · Function fittings
NPQE-DK-G18-Q6-F1A-P10	Push-in fitting · Fittings
NPQE-L-R18-Q6-F1A-P10	Push-in fitting · Fittings
PUN-H-6X1-NT	Plastic tubing · Tubes
PUN-H-6X1-BL	Plastic tubing · Tubes
PUN-H-6X1-SW	Plastic tubing · Tubes
PUN-H-6X1-TBL	Plastic tubing · Tubes
CRSG-M10X1,25	Rod clevis · Piston-rod attachments
CRSGS-M10X1,25	Rod eye · Piston-rod attachments
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
VFOE-LE-T-G18-Q4-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q8-F1A	One-way flow control valve · Function fittings
NPQE-DK-G18-Q4-F1A-P10	Push-in fitting · Push-in fittings
NPQE-DK-G18-Q8-F1A-P10	Push-in fitting · Push-in fittings
NPQE-DK-G18-Q10-F1A-P10	Push-in fitting · Push-in fittings
DARP-M10P-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
