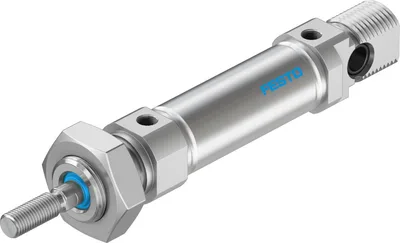

Festo DSNU-16- -F1A-

Standards-based cylinder. Wide range of variants for customised applications. Good running performance and long service life. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. Piston rod with female or male thread. For position sensing

FestoMFR # DSNU-16- -F1A-SKU # YLSRJOS7WBWHXAY

Stroke1, 200

Piston diameter16 mm

Piston rod threadM6

Mounting positionAny

Conforms to standardISO 6432

DesignPiston, Piston rod, Cylinder barrel

Have questions?Chat on WhatsApp

About This Product

Festo DSNU-16- -F1A-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke1, 200

Piston diameter16 mm

Piston rod threadM6

CushioningElastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends

Mounting positionAny

Conforms to standardISO 6432

DesignPiston, Piston rod, Cylinder barrel

Position detectionVia proximity switch

Symbol00991217

VariantsAdvancing stroke adjustment, Weld spatter protection, Custom thread on the piston rod, Piston rod with external hexagon, Low friction for balancer applications, Swivelling rod eye mounting on the end

Operating pressure0.1, 1

Operating pressure1, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Ambient temperature-20, 80

Impact energy in end positions0.15

Cushioning length12

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke103.7

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke120.6

Moving mass for 0 mm stroke23

Additional moving mass per 10 mm stroke2

Basic weight for 0 mm stroke89.9

Additional weight per 10 mm stroke4.6

Type of mountingWith accessories

Pneumatic connectionM5

Note on materialsRoHS compliant

Material coverAnodised wrought aluminium alloy

Material sealsTPE-U(PU)

Material piston rodHigh-alloy stainless steel

Material cylinder barrelHigh-alloy stainless steel

Accessories 23

Genuine accessories that can be used with the Festo DSNU-16- -F1A- motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMBR-8-16	Mounting kit · Retainer for proximity sensor
VFOE-LE-T-M5-Q6-F1A	One-way flow control valve · Function fittings
NPQE-DK-M5-Q4-F1A-P10	Push-in fitting · Fittings
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
CRSG-M6	Rod clevis · Piston-rod attachments
CRSGS-M6	Rod eye · Piston-rod attachments
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
CRLBN-12/16	Clevis foot · Cylinder mountings
CRHBN-12/16X2	Foot mounting · Cylinder mountings
HBN-S-12/16X1-F1A	Foot mounting · Cylinder mountings
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
NPQE-DK-M5-Q6-F1A-P10	Push-in fitting · Push-in fittings
NPQE-L-M5-Q4-F1A-P10	Push-in fitting · Push-in fittings
NPQE-L-M5-Q6-F1A-P10	Push-in fitting · Push-in fittings
DARP-M6-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
