How can I get a price quote for Festo DSBG-320- -PPVA-N3?

You can request a fast quote for Festo DSBG-320- -PPVA-N3 from Yılsa Engineering. Reference part number YLSU29VMG2XYOYK. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DSBG-320- -PPVA-N3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DSBG-320- -PPVA-N3 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DSBG-320- -PPVA-N3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

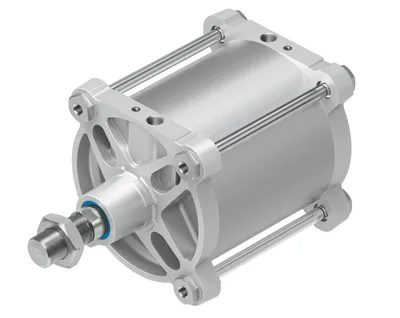

Festo DSBG-320- -PPVA-N3

ISO cylinder. ISO 15552 (ISO 6431, VDMA 24562). Sturdy tie rod design. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. Comprehensive range of mounting accessories for just about every type of installation. For position sensing. Sustainable thanks to extended life cycle and easier repairs

FestoMFR # DSBG-320- -PPVA-N3SKU # YLSU29VMG2XYOYK

Stroke1, 2250

Piston diameter320 mm

Piston rod threadM48x2

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

Have questions?Chat on WhatsApp

About This Product

Festo DSBG-320- -PPVA-N3

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke1, 2250

Piston diameter320 mm

Piston rod threadM48x2

CushioningPneumatic cushioning, adjustable at both ends

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

DesignPiston, Piston rod, Tie rod 1, Cylinder barrel

Position detectionVia proximity switch

Symbol00991235

VariantsPiston rod at one end

Operating pressure0.06, 1

Operating pressure0.6, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-20, 80

Cushioning length65

Cushioning length, advance stroke65

Cushioning length, return stroke65

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke46385

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke48255

Moving mass for 0 mm stroke16912

Additional moving mass per 10 mm stroke249

Basic weight for 0 mm stroke50231

Additional weight per 10 mm stroke623

Type of mountingWith female thread, With accessories

Pneumatic connectionG1

Note on materialsRoHS compliant

Material coverCast aluminium, coated

Material piston sealNBR

Material pistonCast aluminium

Material piston rodHigh-alloy steel

Material piston rod wiperNBR

Buffer seal materialTPE-U(PU)

Material of cushioning bossPOM

Material cylinder barrelSmooth-anodised wrought aluminium alloy

Material nutGalvanised steel

Material bearingMetal polymer compound

Material collar nutGalvanised steel

Material tie rodHigh-alloy steel

Accessories 21

Genuine accessories that can be used with the Festo DSBG-320- -PPVA-N3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SGS-M48X2	Rod eye · Piston-rod attachments
HNG-320	Foot mounting · Cylinder mountings
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
DASP-M4-320-A	Sensor bracket · Retainer for proximity sensor
SG-M48X2	Rod clevis · Piston-rod attachments
SNGB-320	Swivel flange · Cylinder mountings
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
FNG-320	Flange mounting · Cylinder mountings
LNZG-320	Trunnion support · Cylinder mountings
NPFC-D-2R1-M	Double nipple · Other connectors
NPFC-R-G1-G12-MF	Reducing nipple · Other connectors
NPFC-R-G1-G34-MF	Reducing nipple · Other connectors
