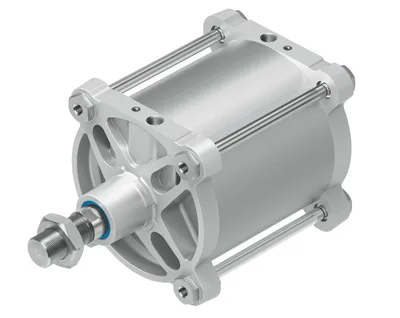

Festo DSBG-250- -PPVA-N3

ISO cylinder. ISO 15552 (ISO 6431, VDMA 24562). Sturdy tie rod design. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. Comprehensive range of mounting accessories for just about every type of installation. For position sensing. Sustainable thanks to extended life cycle and easier repairs

FestoMFR # DSBG-250- -PPVA-N3SKU # YLSAQIZ8AUSXFT

Stroke1, 2250

Piston diameter250 mm

Piston rod threadM42x2

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

Have questions?Chat on WhatsApp

About This Product

Festo DSBG-250- -PPVA-N3

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke1, 2250

Piston diameter250 mm

Piston rod threadM42x2

CushioningPneumatic cushioning, adjustable at both ends

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

DesignPiston, Piston rod, Tie rod 1, Cylinder barrel

Position detectionVia proximity switch

Symbol00991235

VariantsPiston rod at one end

Operating pressure0.06, 1

Operating pressure0.6, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-20, 80

Cushioning length55

Cushioning length, advance stroke55

Cushioning length, return stroke55

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke28274

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke29452

Moving mass for 0 mm stroke9978

Additional moving mass per 10 mm stroke157

Basic weight for 0 mm stroke29313

Additional weight per 10 mm stroke384

Type of mountingWith female thread, With accessories

Pneumatic connectionG1

Note on materialsRoHS compliant

Material coverCast aluminium, coated

Material piston sealNBR

Material pistonCast aluminium

Material piston rodHigh-alloy steel

Material piston rod wiperNBR

Buffer seal materialTPE-U(PU)

Material of cushioning bossPOM

Material cylinder barrelSmooth-anodised wrought aluminium alloy

Material nutGalvanised steel

Material bearingMetal polymer compound

Material collar nutGalvanised steel

Material tie rodHigh-alloy steel

Accessories 21

Genuine accessories that can be used with the Festo DSBG-250- -PPVA-N3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
HNG-250	Foot mounting · Cylinder mountings
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
DASP-M4-250-A	Sensor bracket · Retainer for proximity sensor
SG-M42X2	Rod clevis · Piston-rod attachments
SGS-M42X2	Rod eye · Piston-rod attachments
SNGB-250	Swivel flange · Cylinder mountings
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
FNG-250	Flange mounting · Cylinder mountings
LNZG-250	Trunnion support · Cylinder mountings
NPFC-D-2R1-M	Double nipple · Other connectors
NPFC-R-G1-G12-MF	Reducing nipple · Other connectors
NPFC-R-G1-G34-MF	Reducing nipple · Other connectors
