How can I get a price quote for Festo DSBG-...-250- -?

You can request a fast quote for Festo DSBG-...-250- - from Yılsa Engineering. Reference part number YLSR4XNGOCVFKCE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DSBG-...-250- - in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DSBG-...-250- - genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DSBG-...-250- -?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

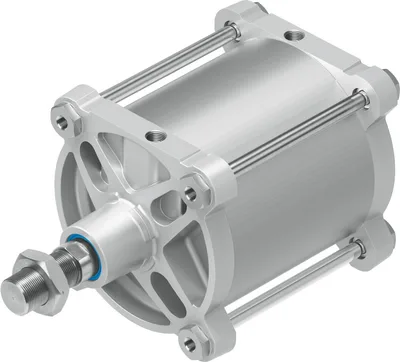

Festo DSBG-...-250- -

ISO cylinder. ISO 15552 (ISO 6431, VDMA 24562). Sturdy tie rod design. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. Comprehensive range of mounting accessories for just about every type of installation. For position sensing. Sustainable thanks to extended life cycle and easier repairs

FestoMFR # DSBG-...-250- -SKU # YLSR4XNGOCVFKCE

Stroke1, 2250

Piston diameter250 mm

Based on standardISO 15552

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread, Female thread

Have questions?Chat on WhatsApp

About This Product

Festo DSBG-...-250- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke1, 2250

Piston diameter250 mm

Piston rod threadM42x2, M42, M36x2, M30x2, M30, M27x2, M27, M24

Based on standardISO 15552

CushioningElastic cushioning rings/plates at both ends, Pneumatic cushioning, adjustable at both ends

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread, Female thread

DesignPiston, Piston rod, Tie rod 1, Cylinder barrel

Position detectionVia proximity switch

Symbol00991217, 00991218, 00991227, 00991235, 00991237

VariantsExtended male piston rod thread, Piston rod with female thread, Custom thread on the piston rod, Extended piston rod, High corrosion protection, Through piston rod, Heat-resistant seals max. 120°C, Sc

Operating pressure0.06, 1

Operating pressure0.6, 10

Mode of operationDouble-acting

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb

Explosion ignition protection type for dustEx h IIIC T120°C Db

Explosion ambient temperature-20°C <= Ta <= +60°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress, 3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-20, 120

Impact energy in end positions4.2, 7.2

Cushioning length55

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke28274

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke28274, 29452

Note on materialsRoHS compliant

Material coverCast aluminium, coated

Material piston sealFluoro rubber, NBR

Material pistonCast aluminium

Material piston rodHigh-alloy steel, High-alloy stainless steel

Material piston rod wiperFluoro rubber, NBR

Buffer seal materialFluoro rubber, TPE-U(PU)

Material of cushioning bossWrought aluminium alloy, POM

Material cylinder barrelSmooth-anodised wrought aluminium alloy

Material nutGalvanised steel, High-alloy stainless steel

Material bearingBronze, Metal polymer compound

Material collar nutGalvanised steel, High-alloy stainless steel

Material tie rodHigh-alloy steel, High-alloy stainless steel

Material spacer boltHigh-alloy steel, High-alloy stainless steel

Material swivel mountingGalvanised steel

Accessories 21

Genuine accessories that can be used with the Festo DSBG-...-250- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SG-M42X2	Rod clevis · Piston-rod attachments
SGS-M42X2	Rod eye · Piston-rod attachments
HNG-250	Foot mounting · Cylinder mountings
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
DASP-M4-250-A	Sensor bracket · Retainer for proximity sensor
SNGB-250	Swivel flange · Cylinder mountings
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
FNG-250	Flange mounting · Cylinder mountings
LNZG-250	Trunnion support · Cylinder mountings
NPFC-D-2R1-M	Double nipple · Other connectors
NPFC-R-G1-G12-MF	Reducing nipple · Other connectors
NPFC-R-G1-G34-MF	Reducing nipple · Other connectors
