How can I get a price quote for Festo DSBG-160-25-PPVA-N3?

You can request a fast quote for Festo DSBG-160-25-PPVA-N3 from Yılsa Engineering. Reference part number YLSFLGQ8ECESB7P. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DSBG-160-25-PPVA-N3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DSBG-160-25-PPVA-N3 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DSBG-160-25-PPVA-N3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

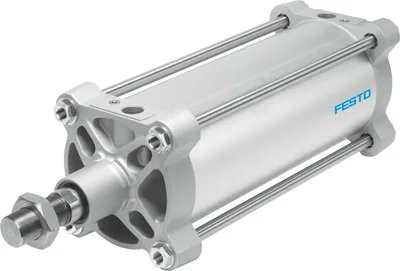

Festo DSBG-160-25-PPVA-N3

ISO cylinder. ISO 15552 (ISO 6431, VDMA 24562). Sturdy tie rod design. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. Comprehensive range of mounting accessories for just about every type of installation. For position sensing. Sustainable thanks to extended life cycle and easier repairs

FestoMFR # DSBG-160-25-PPVA-N3SKU # YLSFLGQ8ECESB7P

Stroke25

Piston diameter160 mm

Piston rod threadM36x2

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

Have questions?Chat on WhatsApp

About This Product

Festo DSBG-160-25-PPVA-N3

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke25

Piston diameter160 mm

Piston rod threadM36x2

CushioningPneumatic cushioning, adjustable at both ends

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

DesignPiston, Piston rod, Tie rod 1, Cylinder barrel

Position detectionVia proximity switch

Symbol00991235

VariantsPiston rod at one end

Operating pressure0.06, 1

Operating pressure0.6, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-20, 80

Impact energy in end positions3.3

Cushioning length48

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke11310

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke12064

Moving mass4535

Moving mass for 0 mm stroke4292

Additional moving mass per 10 mm stroke97

Product weight12271

Basic weight for 0 mm stroke11751

Additional weight per 10 mm stroke208

Type of mountingWith female thread, With accessories

Pneumatic connectionG3/4

Note on materialsRoHS compliant

Material coverCast aluminium, coated

Material piston sealNBR

Material pistonCast aluminium

Material piston rodHigh-alloy steel

Material piston rod wiperNBR

Buffer seal materialTPE-U(PU)

Material of cushioning bossPOM

Material cylinder barrelSmooth-anodised wrought aluminium alloy

Material nutGalvanised steel

Material bearingMetal polymer compound

Material collar nutGalvanised steel

Material tie rodHigh-alloy steel

Accessories 35

Genuine accessories that can be used with the Festo DSBG-160-25-PPVA-N3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SG-M36X2	Rod clevis · Piston-rod attachments
SGS-M36X2	Rod eye · Piston-rod attachments
HNG-160	Foot mounting · Cylinder mountings
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
DASP-M4-160-A	Sensor bracket · Retainer for proximity sensor
GRLA-3/4-B	One-way flow control valve · Function fittings
PAN-R-22X2-SW	Plastic tubing · Tubes
QS-G3/4-22	Push-in fitting · Fittings
SNGB-160	Swivel flange · Cylinder mountings
SNGL-160	Swivel flange · Cylinder mountings
SNG-160	Swivel flange · Cylinder mountings
FK-M36X2	Self-aligning rod coupler · Piston-rod attachments
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
N-3/4-P-13	Barbed hose fitting · Other connectors
N-3/4-P-19	Barbed hose fitting · Other connectors
GRU-3/4-B	Flow control/silencer · Function fittings
N-3/4-P-13-MS	Barbed hose fitting · Other connectors
N-3/4-P-19-MS	Barbed hose fitting · Other connectors
FNG-160	Flange mounting · Cylinder mountings
NPFC-D-R12-R34-M	Double nipple · Other connectors
NPFC-D-2R34-M	Double nipple · Other connectors
NPFC-D-G12-G34-M	Double nipple · Other connectors
NPFC-D-2G34-M	Double nipple · Other connectors
NPFC-R-G34-G14-MF	Reducing nipple · Other connectors
NPFC-R-G34-G38-MF	Reducing nipple · Other connectors
NPFC-R-G34-G12-MF-P50	Reducing nipple · Other connectors
