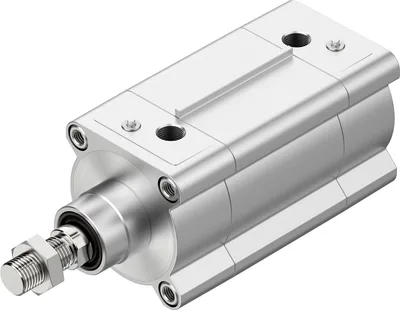

FESTO DSBF-C-80-320-PPVA-N3-R

ISO cylinder. ISO 15552. Increased corrosion protection. Easy-to-clean design. FDA-approved lubrication and sealing on the basic version. Long service life thanks to optional dry-running seal. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. For position sensing. Sustainable thanks to extended life cycle and easier repairs

FESTOMFR # DSBF-C-80-320-PPVA-N3-RSKU # CEY-937FC781AE29

Stroke320

Piston diameter80 mm

Piston rod threadM20x1.5

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

Have questions?Chat on WhatsApp

About This Product

FESTO DSBF-C-80-320-PPVA-N3-R

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke320

Piston diameter80 mm

Piston rod threadM20x1.5

CushioningPneumatic cushioning, adjustable at both ends

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

DesignPiston, Piston rod, Profile barrel

Position detectionVia proximity switch

Symbol00991235

Operating pressure0.04, 1.2

Operating pressure0.4, 12

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-20, 80

Impact energy in end positions1.8

Cushioning length31

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke2721

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke3016

Moving mass2048

Moving mass for 0 mm stroke800

Additional moving mass per 10 mm stroke39

Product weight6171

Basic weight for 0 mm stroke3131

Additional weight per 10 mm stroke95

Type of mountingWith female thread, With accessories

Pneumatic connectionG3/8

Note on materialsRoHS compliant

Material coverCoated die-cast aluminium

Material piston sealTPE-U(PU)

Material pistonWrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Material piston rod wiperTPE-U(PU)

Buffer seal materialTPE-U(PU)

Material of cushioning bossPOM

Material cylinder barrelAnodised wrought aluminium alloy

Material nutHigh-alloy stainless steel

Material bearingPOM

Material collar screwsGalvanised steel

Accessories 74

Genuine accessories that can be used with the FESTO DSBF-C-80-320-PPVA-N3-R motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SNCB-80-R3	Swivel flange · Cylinder mountings
SMB-8-C	Mounting kit · Retainer for proximity sensor
CRSGS-M20X1,5	Rod eye · Piston-rod attachments
CRGRLA-3/8-B	One-way flow control valve · Function fittings
CRSMT-8M-PS-24V-K-5,0-OE-EX2	Proximity sensor · Proximity sensors
CRSMT-8M-PS-24V-K-0,3-M8D-EX2	Proximity sensor · Proximity sensors
NPQR-DK-G38-Q10	Push-in fitting · Fittings
NPQR-L-G38-Q10	Push-in fitting · Fittings
PUN-H-F-10X1,5-BL	Plastic tubing · Tubes
PUN-H-F-10X1,5-TBL	Plastic tubing · Tubes
PUN-H-F-10X1,5-SW	Plastic tubing · Tubes
PUN-H-F-10X1,5-NT	Plastic tubing · Tubes
CRSG-M20X1,5	Rod clevis · Piston-rod attachments
CRFK-M20X1,5	Self-aligning rod coupler · Piston-rod attachments
CRFNG-80	Flange mounting · Cylinder mountings
CRHNC-80	Foot mounting · Cylinder mountings
CRSNCS-80	Swivel flange · Cylinder mountings
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
VFOE-LE-T-G38-Q8	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10-P20	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q8-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10-F1A	One-way flow control valve · Function fittings
FK-M20X1,5	Self-aligning rod coupler · Piston rod attachments
SG-M20X1,5	Rod clevis · Piston rod attachments
SGS-M20X1,5	Rod eye · Piston rod attachments
KSG-M20X1,5	Coupling piece · Piston rod attachments
KSZ-M20X1,5	Coupling piece · Piston rod attachments
CRQS-3/8-10-I	Push-in fitting · Stainless-steel fittings
CRQS-3/8-12-I	Push-in fitting · Stainless-steel fittings
NPQP-D-R38-Q10-FD-P10	Push-in fitting · Push-in fittings
NPQP-D-R38-Q12-FD-P10	Push-in fitting · Push-in fittings
NPQP-L-R38-Q10-FD-P10	Push-in L-fitting · Push-in fittings
NPQP-L-R38-Q12-FD-P10	Push-in L-fitting · Push-in fittings
NPQP-D-R38-Q10-FD	Push-in fitting · Push-in fittings
NPQP-D-R38-Q12-FD	Push-in fitting · Push-in fittings
NPQP-L-R38-Q10-FD	Push-in L-fitting · Push-in fittings
NPQP-L-R38-Q12-FD	Push-in L-fitting · Push-in fittings
CRLNG-80	Clevis foot · Cylinder mountings
CRZNG-80	Trunnion flange · Cylinder mountings
CRQS-3/8-10	Push-in fitting · Stainless-steel fittings
CRQS-3/8-12	Push-in fitting · Stainless-steel fittings
CRQSL-3/8-10	Push-in L-fitting · Stainless-steel fittings
CRQSL-3/8-12	Push-in L-fitting · Stainless-steel fittings
SMT-C1-PS-24V-K-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-C1-PS-24V-K-10,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-C1-PS-24V-K-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-C1-PS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
NPQH-LL-G38-Q10-P10	Push-in L-fitting, long · Push-in fittings
NPQH-L-G38-Q8-P10	Push-in L-fitting · Push-in fittings
NPQH-L-G38-Q10-P10	Push-in L-fitting · Push-in fittings
NPQH-D-G38-Q8-P10	Push-in fitting · Push-in fittings
NPQH-D-G38-Q10-P10	Push-in fitting · Push-in fittings
NPQH-T-G38-Q8-P10	Push-in T-fitting · Push-in fittings
NPQH-T-G38-Q10-P10	Push-in T-fitting · Push-in fittings
DAMD-PS-M10-16-R1	Plug screw · Mounting accessories
NPCK-C-D-G38-K10	Fitting · Stainless-steel fittings
NPFC-T-2G38-R38-FMF	T-fitting · Other connectors
NPFC-T-G38-2R38-FMM	T-fitting · Other connectors
NPFC-D-2G38-M	Double nipple · Other connectors
NPFC-E1-2G38-FM	Extension · Other connectors
NPFC-R-G38-G18-MF	Reducing nipple · Other connectors
NPFC-R-G38-G14-MF	Reducing nipple · Other connectors
NPFC-R-G38-G18-FM	Reducing nipple · Other connectors
NPFC-R-G38-G14-FM	Reducing nipple · Other connectors
NPFC-D-2G38-M-P50	Double nipple · Other connectors
NPFC-R-G38-G14-MF-P50	Reducing nipple · Other connectors
NPFC-DS-G14-G38-M	Double nipple · Other connectors
NPFC-DS-G38-G38-M	Double nipple · Other connectors
NPFC-RS-G38-G18-MF	Reducing nipple · Other connectors
NPFC-RS-G38-G14-MF	Reducing nipple · Other connectors
DARP-M20P-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
