How can I get a price quote for FESTO DSBF-C-125-125-PPVA-N3-R?

You can request a fast quote for FESTO DSBF-C-125-125-PPVA-N3-R from Yılsa Engineering. Reference part number CEY-937FC781ACFE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO DSBF-C-125-125-PPVA-N3-R in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO DSBF-C-125-125-PPVA-N3-R genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO DSBF-C-125-125-PPVA-N3-R?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

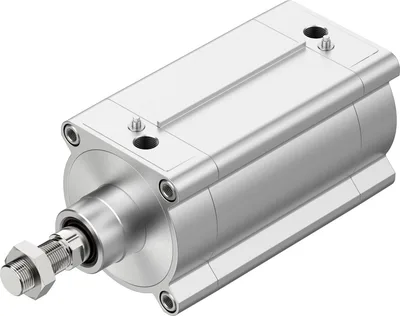

FESTO DSBF-C-125-125-PPVA-N3-R

ISO cylinder. ISO 15552. Increased corrosion protection. Easy-to-clean design. FDA-approved lubrication and sealing on the basic version. Long service life thanks to optional dry-running seal. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. For position sensing. Sustainable thanks to extended life cycle and easier repairs

FESTOMFR # DSBF-C-125-125-PPVA-N3-RSKU # CEY-937FC781ACFE

Stroke125

Piston diameter125 mm

Piston rod threadM27x2

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

Have questions?Chat on WhatsApp

About This Product

FESTO DSBF-C-125-125-PPVA-N3-R

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke125

Piston diameter125 mm

Piston rod threadM27x2

CushioningPneumatic cushioning, adjustable at both ends

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

DesignPiston, Piston rod, Profile barrel

Position detectionVia proximity switch

Symbol00991235

Operating pressure0.02, 1

Operating pressure0.2, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-20, 80

Impact energy in end positions3.3

Cushioning length45

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke6881

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke7363

Moving mass3033

Moving mass for 0 mm stroke2245

Additional moving mass per 10 mm stroke63

Product weight8966

Basic weight for 0 mm stroke6928

Additional weight per 10 mm stroke163

Type of mountingWith female thread, With accessories

Pneumatic connectionG1/2

Note on materialsRoHS compliant

Material coverCoated die-cast aluminium

Material piston sealTPE-U(PU)

Material pistonWrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Material piston rod wiperTPE-U(PU)

Buffer seal materialTPE-U(PU)

Material of cushioning bossPOM

Material cylinder barrelAnodised wrought aluminium alloy

Material nutHigh-alloy stainless steel

Material bearingPOM

Material collar screwsGalvanised steel

Accessories 38

Genuine accessories that can be used with the FESTO DSBF-C-125-125-PPVA-N3-R motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CRGRLA-1/2-B	One-way flow control valve · Function fittings
SNCB-125-R3	Swivel flange · Cylinder mountings
SMB-8-C	Mounting kit · Retainer for proximity sensor
CRSGS-M27X2	Rod eye · Piston-rod attachments
CRSMT-8M-PS-24V-K-5,0-OE-EX2	Proximity sensor · Proximity sensors
CRSMT-8M-PS-24V-K-0,3-M8D-EX2	Proximity sensor · Proximity sensors
PUN-H-F-12X2-NT	Plastic tubing · Tubes
PUN-H-F-12X2-BL	Plastic tubing · Tubes
PUN-H-F-12X2-TBL	Plastic tubing · Tubes
PUN-H-F-12X2-SW	Plastic tubing · Tubes
NPQR-DK-G12-Q12	Push-in fitting · Fittings
NPQR-L-G12-Q12	Push-in fitting · Fittings
CRHNC-125	Foot mounting · Cylinder mountings
CRFNG-125	Flange mounting · Cylinder mountings
SNCS-125-R3	Swivel flange · Cylinder mountings
CRSG-M27X2	Rod clevis · Piston-rod attachments
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
VFOE-LE-T-G12-Q12	One-way flow control valve · Function fittings
VFOE-LE-T-G12-Q12-P20	One-way flow control valve · Function fittings
FK-M27X2	Self-aligning rod coupler · Piston rod attachments
SGS-M27X2	Rod eye · Piston rod attachments
SG-M27X2-B	Rod clevis · Piston rod attachments
KSG-M27X2	Coupling piece · Piston rod attachments
CRQS-1/2-12-I	Push-in fitting · Stainless-steel fittings
CRQS-1/2-16-I	Push-in fitting · Stainless-steel fittings
NPQP-D-R12-Q12-FD	Push-in fitting · Push-in fittings
NPQP-L-R12-Q12-FD	Push-in L-fitting · Push-in fittings
CRQS-1/2-12	Push-in fitting · Stainless-steel fittings
CRQS-1/2-16	Push-in fitting · Stainless-steel fittings
CRQSL-1/2-12	Push-in L-fitting · Stainless-steel fittings
CRQSL-1/2-16	Push-in L-fitting · Stainless-steel fittings
CRQST-1/2-16	Push-in T-fitting · Stainless-steel fittings
SMT-C1-PS-24V-K-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-C1-PS-24V-K-10,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-C1-PS-24V-K-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-C1-PS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
