How can I get a price quote for FESTO DSBF-C-100-320-PPSA-N3-R?

You can request a fast quote for FESTO DSBF-C-100-320-PPSA-N3-R from Yılsa Engineering. Reference part number CEY-937FC781AD06. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO DSBF-C-100-320-PPSA-N3-R in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO DSBF-C-100-320-PPSA-N3-R genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO DSBF-C-100-320-PPSA-N3-R?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

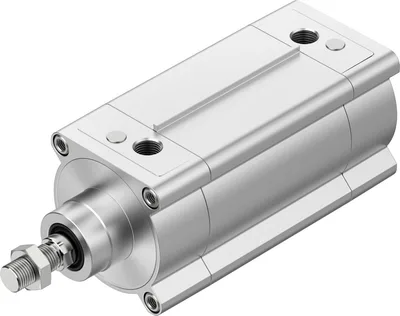

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO DSBF-C-100-320-PPSA-N3-R

ISO cylinder. ISO 15552. Increased corrosion protection. Easy-to-clean design. FDA-approved lubrication and sealing on the basic version. Long service life thanks to optional dry-running seal. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. For position sensing. Sustainable thanks to extended life cycle and easier repairs

FESTOMFR # DSBF-C-100-320-PPSA-N3-RSKU # CEY-937FC781AD06

Stroke320

Piston diameter100 mm

Piston rod threadM20x1.5

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

Have questions?Chat on WhatsApp

About This Product

FESTO DSBF-C-100-320-PPSA-N3-R

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke320

Piston diameter100 mm

Piston rod threadM20x1.5

CushioningSelf-adjusting pneumatic end-position cushioning

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

DesignPiston, Piston rod, Profile barrel

Position detectionVia proximity switch

Symbol00992970

Operating pressure0.04, 1.2

Operating pressure0.4, 12

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-20, 80

Impact energy in end positions2.5

Cushioning length31

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke4418

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke4712

Moving mass2293

Moving mass for 0 mm stroke1045

Additional moving mass per 10 mm stroke39

Product weight7943

Basic weight for 0 mm stroke4551

Additional weight per 10 mm stroke106

Type of mountingWith female thread, With accessories

Pneumatic connectionG1/2

Note on materialsRoHS compliant

Material coverCoated die-cast aluminium

Material piston sealTPE-U(PU)

Material pistonWrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Material piston rod wiperTPE-U(PU)

Buffer seal materialTPE-U(PU)

Material of cushioning bossPOM

Material cylinder barrelAnodised wrought aluminium alloy

Material nutHigh-alloy stainless steel

Material bearingPOM

Material collar screwsGalvanised steel

Accessories 44

Genuine accessories that can be used with the FESTO DSBF-C-100-320-PPSA-N3-R motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CRSGS-M20X1,5	Rod eye · Piston-rod attachments
CRGRLA-1/2-B	One-way flow control valve · Function fittings
SMB-8-C	Mounting kit · Retainer for proximity sensor
SNCB-100-R3	Swivel flange · Cylinder mountings
CRSMT-8M-PS-24V-K-5,0-OE-EX2	Proximity sensor · Proximity sensors
CRSMT-8M-PS-24V-K-0,3-M8D-EX2	Proximity sensor · Proximity sensors
NPQR-DK-G12-Q12	Push-in fitting · Fittings
NPQR-L-G12-Q12	Push-in fitting · Fittings
CRFNG-100	Flange mounting · Cylinder mountings
CRHNC-100	Foot mounting · Cylinder mountings
SNCS-100-R3	Swivel flange · Cylinder mountings
PUN-H-F-12X2-NT	Plastic tubing · Tubes
PUN-H-F-12X2-BL	Plastic tubing · Tubes
PUN-H-F-12X2-TBL	Plastic tubing · Tubes
PUN-H-F-12X2-SW	Plastic tubing · Tubes
CRSG-M20X1,5	Rod clevis · Piston-rod attachments
CRFK-M20X1,5	Self-aligning rod coupler · Piston-rod attachments
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
VFOE-LE-T-G12-Q12	One-way flow control valve · Function fittings
VFOE-LE-T-G12-Q12-P20	One-way flow control valve · Function fittings
FK-M20X1,5	Self-aligning rod coupler · Piston rod attachments
SG-M20X1,5	Rod clevis · Piston rod attachments
SGS-M20X1,5	Rod eye · Piston rod attachments
KSG-M20X1,5	Coupling piece · Piston rod attachments
KSZ-M20X1,5	Coupling piece · Piston rod attachments
CRQS-1/2-12-I	Push-in fitting · Stainless-steel fittings
CRQS-1/2-16-I	Push-in fitting · Stainless-steel fittings
NPQP-D-R12-Q12-FD	Push-in fitting · Push-in fittings
NPQP-L-R12-Q12-FD	Push-in L-fitting · Push-in fittings
CRLNG-100	Clevis foot · Cylinder mountings
CRZNG-100	Trunnion flange · Cylinder mountings
CRQS-1/2-12	Push-in fitting · Stainless-steel fittings
CRQS-1/2-16	Push-in fitting · Stainless-steel fittings
CRQSL-1/2-12	Push-in L-fitting · Stainless-steel fittings
CRQSL-1/2-16	Push-in L-fitting · Stainless-steel fittings
CRQST-1/2-16	Push-in T-fitting · Stainless-steel fittings
SMT-C1-PS-24V-K-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-C1-PS-24V-K-10,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-C1-PS-24V-K-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-C1-PS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
DAMD-PS-M10-16-R1	Plug screw · Mounting accessories
DARP-M20P-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
