How can I get a price quote for FESTO DPA-63-D?

You can request a fast quote for FESTO DPA-63-D from Yılsa Engineering. Reference part number CEY-937FC781EB17. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO DPA-63-D in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO DPA-63-D genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO DPA-63-D?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

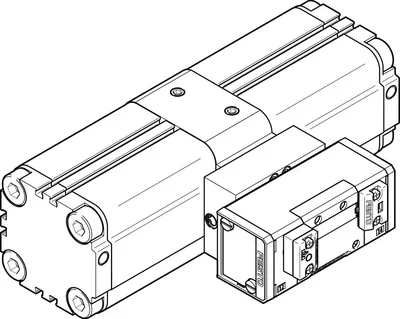

FESTO DPA-63-D

Pressure booster. Pneumatic pressure increase up to double the input pressure. Available as pressure booster/air pressure reservoir combinations. Any mounting position. Short filling times. Long service life. Compact design. Available with sensing option. Sustainable operation thanks to reduced pressure level

FESTOMFR # DPA-63-DSKU # CEY-937FC781EB17

Piston diameter63 mm

Mounting positionAny

DesignTwin-piston pressure booster

Symbol00992008

Output pressure 20.4, 1.6

Output pressure 24, 16

Have questions?Chat on WhatsApp

About This Product

FESTO DPA-63-D

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Piston diameter63 mm

Mounting positionAny

DesignTwin-piston pressure booster

Symbol00992008

Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/8

Output pressure 20.4, 1.6

Output pressure 24, 16

Output pressure 258, 232

Operating pressure0.2, 0.8

Operating pressure2, 8

Operating pressure29, 116

Pressure regulation range0.4, 1.6

Pressure regulation range4, 16

Pressure regulation range58, 232

Inlet pressure 12, 8

Inlet pressure 10.2, 0.8

Inlet pressure 129, 116

Operating mediumCompressed air to ISO 8573-1:2010 [7:3:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature5, 60

Ambient temperature5, 60

Product weight6000

Type of mountingWith female thread

Pneumatic connection, port 1G3/8

Pneumatic connection, port 2G3/8

Pneumatic connection, port 3G3/8

Note on materialsRoHS compliant

Accessories 36

Genuine accessories that can be used with the FESTO DPA-63-D motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-12X2-TBL	Plastic tubing · Tubes
QS-G3/8-12	Push-in fitting · Fittings
PUN-H-12X2-NT	Plastic tubing · Tubes
U-3/8-B	Silencer · Silencer
QS-G3/8-12-I	Push-in fitting · Fittings
PUN-H-12X2-BL	Plastic tubing · Tubes
AMTE-M-LH-M3	Silencer · Silencer
PUN-H-12X2-SW	Plastic tubing · Tubes
HUA-63	Foot mounting · Cylinder mountings
CN-3/8-PK-6	Barbed fitting · Barbed fittings
TCN-3/8-PK-6	Barbed T-fitting · Barbed fittings
LCN-3/8-PK-6	Barbed elbow fitting · Barbed fittings
LCNH-3/8-PK-6	Barbed elbow fitting · Barbed fittings
LRVS-D-MINI	Regulator lock · Mounting accessories
NPQM-D-G38-Q8-P10	Push-in fitting · Push-in fittings
NPQM-D-G38-Q10-P10	Push-in fitting · Push-in fittings
NPQM-D-G38-Q12-P10	Push-in fitting · Push-in fittings
NPQM-L-G38-Q8-P10	Push-in L-fitting · Push-in fittings
NPQM-L-G38-Q10-P10	Push-in L-fitting · Push-in fittings
NPQM-L-G38-Q12-P10	Push-in L-fitting · Push-in fittings
NPQM-T-G38-Q8-P10	Push-in T-fitting · Push-in fittings
NPQM-T-G38-Q10-P10	Push-in T-fitting · Push-in fittings
NPQM-T-G38-Q12-P10	Push-in T-fitting · Push-in fittings
NPQM-LK-G38-Q10-P10	Push-in L-fitting · Push-in fittings
NPQM-LH-G38-Q8-P10	Push-in L-fitting · Push-in fittings
NPQM-LH-G38-Q10-P10	Push-in L-fitting · Push-in fittings
NPQM-LH-G38-Q12-P10	Push-in L-fitting · Push-in fittings
NPQM-D-G38-Q14-P10	Push-in fitting · Push-in fittings
NPQM-L-G38-Q14-P10	Push-in L-fitting · Push-in fittings
NPQH-LL-G38-Q10-P10	Push-in L-fitting, long · Push-in fittings
NPQH-L-G38-Q8-P10	Push-in L-fitting · Push-in fittings
NPQH-L-G38-Q10-P10	Push-in L-fitting · Push-in fittings
NPQH-D-G38-Q8-P10	Push-in fitting · Push-in fittings
NPQH-D-G38-Q10-P10	Push-in fitting · Push-in fittings
NPQH-T-G38-Q8-P10	Push-in T-fitting · Push-in fittings
NPQH-T-G38-Q10-P10	Push-in T-fitting · Push-in fittings
