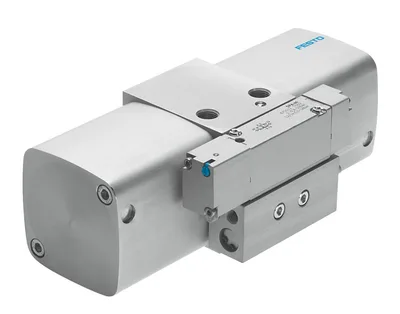

FESTO DPA-40-D

Pressure booster. Pneumatic pressure increase up to double the input pressure. Available as pressure booster/air pressure reservoir combinations. Any mounting position. Short filling times. Long service life. Compact design. Available with sensing option. Sustainable operation thanks to reduced pressure level

FESTOMFR # DPA-40-DSKU # CEY-937FC781EB18

Piston diameter40 mm

Mounting positionAny

DesignTwin-piston pressure booster

Symbol00992008

Output pressure 20.5, 1.6

Output pressure 25, 16

Have questions?Chat on WhatsApp

About This Product

FESTO DPA-40-D

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Piston diameter40 mm

Mounting positionAny

DesignTwin-piston pressure booster

Symbol00992008

Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/8

Output pressure 20.5, 1.6

Output pressure 25, 16

Output pressure 272.5, 232

Operating pressure0.2, 0.8

Operating pressure2, 8

Operating pressure29, 116

Pressure regulation range0.4, 1.6

Pressure regulation range4, 16

Pressure regulation range58, 232

Inlet pressure 12.5, 8

Inlet pressure 10.25, 0.8

Inlet pressure 136.25, 116

Operating mediumCompressed air to ISO 8573-1:2010 [7:3:4]

Note on operating and pilot mediumLubricated operation not possible

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature5, 60

Ambient temperature5, 60

Product weight1500

Type of mountingWith female thread

Pneumatic connection, port 1G1/4

Pneumatic connection, port 2G1/4

Pneumatic connection, port 3M7

Note on materialsRoHS compliant

Accessories 15

Genuine accessories that can be used with the FESTO DPA-40-D motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-10X1,5-TBL	Plastic tubing · Tubes
UC-M7	Silencer · Silencer
PUN-H-10X1,5-NT	Plastic tubing · Tubes
FDPA-40	Flange mounting · Mounting accessories
QS-G1/4-10	Push-in fitting · Fittings
PUN-H-10X1,5-BL	Plastic tubing · Tubes
QS-G1/4-10-I	Push-in fitting · Fittings
DPA-40-16-MA-SET	Pressure gauge kit · General accessories
PUN-H-10X1,5-SW	Plastic tubing · Tubes
QSL-G1/4-10	Push-in L-fitting · Fittings
NPQH-LL-G14-Q8-P10	Push-in L-fitting, long · Push-in fittings
NPQH-L-G14-Q8-P10	Push-in L-fitting · Push-in fittings
NPQH-D-G14-Q8-P10	Push-in fitting · Push-in fittings
NPQH-DK-G14-Q8-P10	Push-in fitting · Push-in fittings
NPQH-T-G14-Q8-P10	Push-in T-fitting · Push-in fittings
