How can I get a price quote for Festo DNCI-32- -?

You can request a fast quote for Festo DNCI-32- - from Yılsa Engineering. Reference part number YLSG5IATJ0G5X. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DNCI-32- - in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DNCI-32- - genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DNCI-32- -?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

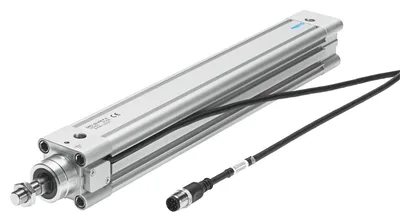

Festo DNCI-32- -

ISO cylinder. Standards-based cylinder to ISO 15552. With integrated displacement encoder for relative analogue, contactless measurement. Suitable for servo-pneumatic applications with axis controller CPX-CMAX, end-position controller CPX-CMPX or SPC11 and measuring module CPX-CMIX. Piston rod with male thread. Piston rod variants. With optional recirculating ball bearing guide, clamping unit

FestoMFR # DNCI-32- -SKU # YLSG5IATJ0G5X

Stroke10, 2000

Stroke Servopneumatic positioning100, 500

Stroke Smart Softstop100, 500

Stroke reduction at end positions>= 10 mm

Smallest positioning stroke3% of max. stroke, But max. 20 mm

Piston diameter32 mm

Have questions?Chat on WhatsApp

About This Product

Festo DNCI-32- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke10, 2000

Stroke Servopneumatic positioning100, 500

Stroke Smart Softstop100, 500

Stroke reduction at end positions>= 10 mm

Smallest positioning stroke3% of max. stroke, But max. 20 mm

Piston diameter32 mm

Based on standardISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)

CushioningElastic cushioning rings/plates at both ends

Positioning installation positionAny

Soft Stop installation positionAny

Functional principle of measuring systemDigital

DesignPiston, Piston rod, Profile barrel

Position detectionVia proximity switch, Via integrated displacement encoder

VariantsExtended piston rod, Piston rod at one end, With two measuring heads

Protection against torque/guideDual flat piston rod

Operating pressure1.2

Operating pressure12

Operating pressure174

Operating pressure positioning/Soft Stop4, 8

Max. travel speed1.5

Min. travel speed0.05

Typical positioning time short stroke, horizontal0.35/0.55 s

Typical positioning time long stroke, horizontal0.45/0.7 s

Mode of operationDouble-acting

Nominal operating voltage DC5

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Operating mediumCompressed air to ISO 8573-1:2010 [6:4:4]

Note on operating and pilot mediumDew point at least 10 °C below the ambient temperature and temperature of the medium

Continuous shock resistance to DIN/IEC 68 Part 2-82Tested to severity level 2

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Max. magnetic interference field10 KA/m at a distance of 100 mm

Degree of protectionIP65, To IEC 60529

Vibration resistance to DIN/IEC 68 Part 2-6Tested to severity level 2

Ambient temperature-20, 80

Impact energy in end positions0.1

Max. torque for protection against torsion0.05

Max. working load, horizontal45

Max. working load, vertical15

Min. working load, horizontal3

Min. working load, vertical3

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke415

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke415, 483

Moving mass for 0 mm stroke95

Additional moving mass per 10 mm stroke8

Basic weight for 0 mm stroke521

Additional weight per 10 mm stroke30

Output signalAnalogue

Repetition accuracy in ± mm0.5

Max. controllable force during advance stroke435

Max. controllable force during return stroke374

Typical friction force35

Repetition accuracy Soft Stop intermediate position+/- 2 mm

Electrical connection encoder8-pin

Cable length1.5

Type of mountingWith accessories

Pneumatic connectionG1/8

Note on materialsRoHS compliant

Material coverWrought aluminium alloy

Material sealsNBR, TPE-U(PU)

Material cable sheathTPE-U(PUR)

Material piston rodHigh-alloy steel

Material screwsSteel

Material sensor coverAluminium

Material sensor headPOM

Material connector housingPBT

Material cylinder barrelWrought aluminium alloy

Mean time to failure (MTTF), subcomponent4761 years, sensor

Accessories 67

Genuine accessories that can be used with the Festo DNCI-32- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VFOE-LE-T-G18-Q6	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q4	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q8	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q6-P50	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q4-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q8-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q6-F1A	One-way flow control valve · Function fittings
CK-1/8-PK-6	Quick connector · Quick connectors
CK-1/8-PK-6-KU	Quick connector · Quick connectors
SGS-M10X1,25	Rod eye · Piston rod attachments
ABP-5-S	Slot cover · Mounting accessories
QS-1/8-8	Push-in fitting · Push-in fittings
AD-M10X1,25-1/8	Adapter · Piston rod attachments
AD-M10X1,25-1/4	Adapter · Piston rod attachments
HNC-32	Foot mounting · Cylinder mountings
FNC-32	Flange mounting · Cylinder mountings
SNCS-32	Swivel flange · Cylinder mountings
QS-G1/8-8	Push-in fitting · Push-in fittings
VBQF-U-G18-E	Quick exhaust valve · Function fittings
VBQF-U-G18-Q6	Quick exhaust valve · Function fittings
VBQF-D-G18-E	Quick exhaust valve · Function fittings
VBQF-D-G18-Q6	Quick exhaust valve · Function fittings
NPQH-LL-G18-Q6-P10	Push-in L-fitting, long · Push-in fittings
NPQH-LL-G18-Q8-P10	Push-in L-fitting, long · Push-in fittings
NPQH-L-G18-Q6-P10	Push-in L-fitting · Push-in fittings
NPQH-L-G18-Q8-P10	Push-in L-fitting · Push-in fittings
NPQH-D-G18-Q6-P10	Push-in fitting · Push-in fittings
NPQH-D-G18-Q8-P10	Push-in fitting · Push-in fittings
NPQH-DK-G18-Q6-P10	Push-in fitting · Push-in fittings
NPQH-DK-G18-Q8-P10	Push-in fitting · Push-in fittings
NPQH-T-G18-Q6-P10	Push-in T-fitting · Push-in fittings
NPQH-T-G18-Q8-P10	Push-in T-fitting · Push-in fittings
NPFC-L-2G18-F	Elbow fitting · Other connectors
NPFC-L-R18-G18-MF	Elbow fitting · Other connectors
NPFC-L-2R18-M	Elbow fitting · Other connectors
NPFC-Y-R18-2G18-MFF	Y-fitting · Other connectors
NPFC-T-3G18-F	T-fitting · Other connectors
NPFC-T-R18-2G18-MFF	T-fitting · Other connectors
NPFC-T-2G18-R18-FMF	T-fitting · Other connectors
NPFC-T-G18-2R18-FMM	T-fitting · Other connectors
NPFC-T-2R18-G18-MMF	T-fitting · Other connectors
NPFC-D-M7-G18-M	Double nipple · Other connectors
NPFC-D-2G18-M	Double nipple · Other connectors
NPFC-D-2R18-M	Double nipple · Other connectors
NPFC-S-2G18-F	Sleeve · Other connectors
NPFC-R-G38-G18-F	Reducing sleeve · Other connectors
NPFC-E1-2G18-FM	Extension · Other connectors
NPFC-E2-2G18-FM	Extension · Other connectors
NPFC-E3-2G18-FM	Extension · Other connectors
NPFC-E4-2G18-FM	Extension · Other connectors
NPFC-R-G14-G18-MF	Reducing nipple · Other connectors
NPFC-R-G38-G18-MF	Reducing nipple · Other connectors
NPFC-R-G14-G18-FM	Reducing nipple · Other connectors
NPFC-R-G38-G18-FM	Reducing nipple · Other connectors
NEAU-A-N8-1	Mounting · Mounting accessories
NEAU-A-N8-2	Mounting · Mounting accessories
NPFC-D-M5-G18-M	Double nipple · Other connectors
NPFC-D-2G18-M-P100	Double nipple · Other connectors
NPFC-R-G14-G18-F	Reducing sleeve · Other connectors
NPFC-R-G12-G18-F	Reducing sleeve · Other connectors
NPFC-R-G14-G18-MF-P100	Reducing nipple · Other connectors
NPFC-H-G18-F	Bulkhead fitting · Other connectors
NPFC-D-2G18-M-F1A	Double nipple · Other connectors
NPFC-DS-G18-G18-M	Double nipple · Other connectors
NPFC-DS-G18-G14-M	Double nipple · Other connectors
NPFC-RS-G14-G18-MF	Reducing nipple · Other connectors
NPFC-RS-G38-G18-MF	Reducing nipple · Other connectors
