How can I get a price quote for FESTO DGSC-6-10-P-L?

You can request a fast quote for FESTO DGSC-6-10-P-L from Yılsa Engineering. Reference part number CEY-937FC781CE3B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO DGSC-6-10-P-L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO DGSC-6-10-P-L genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO DGSC-6-10-P-L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

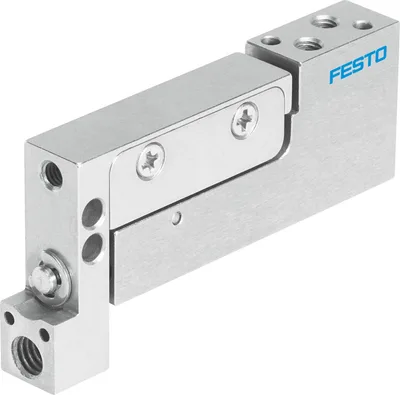

FESTO DGSC-6-10-P-L

Mini slide. Smallest guided slide unit on the market. Precision ball bearing cage guide for a reliable and high-quality process. Long service life thanks to housing made from high-alloy steel. Low break-away pressure and uniform movement thanks to minimal friction of guide and seal

FESTOMFR # DGSC-6-10-P-LSKU # CEY-937FC781CE3B

Stroke10

Piston diameter6 mm

Operating mode, drive unitYoke

Mounting positionAny

GuideBall bearing cage guide

DesignScotch yoke system

Have questions?Chat on WhatsApp

About This Product

FESTO DGSC-6-10-P-L

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke10

Piston diameter6 mm

Operating mode, drive unitYoke

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

GuideBall bearing cage guide

DesignScotch yoke system

Position detectionNone

Symbol00991263

Operating pressure0.1, 0.6

Operating pressure1, 6

Operating pressure14.5, 87

Repetition accuracy0.2 mm

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature10, 50

Max. force Fy20

Max. force Fz20

Max. moment Mx0.3

Max. moment My0.4

Max. moment Mz0.4

Max. effective load dependent upon stroke at defined distance xs30

Max. effective load0.03

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke12.7

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke17

Moving mass17

Product weight42

Type of mountingVia female thread and dowel pin

Pneumatic connectionM3

Note on materialsRoHS compliant

Material coverPOM

Material sealsNBR

Material guideHigh-alloy steel

Material housingHigh-alloy stainless steel

Material piston rodHigh-alloy stainless steel

Accessories 17

Genuine accessories that can be used with the FESTO DGSC-6-10-P-L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSML-M3-3	Push-in L-fitting · Fittings
QSM-M3-3	Push-in fitting · Fittings
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-H-3X0,5-BL	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
VAS-8-M5-SI-B	Suction cup with connection · Piston-rod attachments
VAS-8-M5-PUR-B	Suction cup with connection · Piston-rod attachments
GRLA-M3-QS-3	One-way flow control valve · Function fittings
LCN-M3-PK-2-B	Barbed elbow fitting · Fittings
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
LCN-M3-PK-3	Barbed elbow fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSM-M3-3-100	Push-in fitting · Push-in fittings
QSM-M3-3-I-R-100	Push-in fitting · Push-in fittings
GRLA-M3	One-way flow control valve · Function fittings
GRLZ-M3	One-way flow control valve · Function fittings
