How can I get a price quote for Festo DGRF-C-GF-63- -?

You can request a fast quote for Festo DGRF-C-GF-63- - from Yılsa Engineering. Reference part number YLSQBHKMITMENQ4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DGRF-C-GF-63- - in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DGRF-C-GF-63- - genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DGRF-C-GF-63- -?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

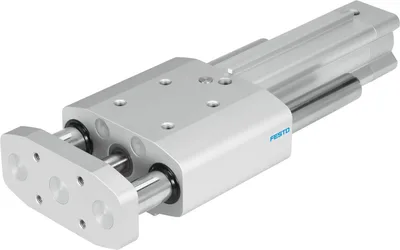

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo DGRF-C-GF-63- -

Guided drive. Easy-to-clean design. Increased corrosion protection. FDA-approved lubrication and sealing on the basic version. Hygienic mounting of the sensors possible. Compact design with high guide precision and load capacity. Long service life thanks to optional dry-running seal. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes

FestoMFR # DGRF-C-GF-63- -SKU # YLSQBHKMITMENQ4

Stroke10, 400

Piston diameter63 mm

Operating mode, drive unitYoke

Mounting positionAny

GuidePlain-bearing guide

DesignGuidance

Have questions?Chat on WhatsApp

About This Product

Festo DGRF-C-GF-63- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke10, 400

Piston diameter63 mm

Operating mode, drive unitYoke

CushioningSelf-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends

Mounting positionAny

GuidePlain-bearing guide

DesignGuidance

Position detectionVia proximity switch

VariantsFor unlubricated operation

Operating pressure0.15, 1.2

Operating pressure1.5, 12

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitable for use with foodSee supplementary material information

Ambient temperature-20, 80

Impact energy in end positions1.3

Cushioning length22

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1682

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1870

Torsional backlash0.061

Moving mass for 0 mm stroke2114

Additional moving mass per 10 mm stroke101.7

Basic weight for 0 mm stroke6405

Additional weight per 10 mm stroke142.8

Type of mountingWith through-hole, With female thread

Pneumatic connectionG3/8

Note on materialsRoHS compliant

Material coverDie-cast aluminium, coated

Material guide rodHigh-alloy stainless steel

Material housingWrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Material cylinder barrelWrought aluminium alloy

Accessories 39

Genuine accessories that can be used with the Festo DGRF-C-GF-63- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NPQH-L-G38-Q10-P10	Push-in L-fitting · Fittings
DAMD-PS-M8-16-R1	Plug screw · Mounting accessories
NPCK-C-D-G38-K10	Fitting · Fittings
CRGRLA-3/8-B	One-way flow control valve · Function fittings
CRQS-3/8-10	Push-in fitting · Fittings
PLN-10X1,5-NT	Plastic tubing · Tubes
PUN-H-10X1,5-NT	Plastic tubing · Tubes
DAMD-P-M10-16-R1	Plug screw · Mounting accessories
SMT-C1-PS-24V-K-5,0-OE	Proximity sensor · Proximity sensors
SMT-C1-PS-24V-K-0,3-M8D	Proximity sensor · Proximity sensors
VFOE-LE-T-G38-Q10	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q8	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10-P20	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q8-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10-F1A	One-way flow control valve · Function fittings
SMT-C1-PS-24V-K-10,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-C1-PS-24V-K-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
NPQH-LL-G38-Q10-P10	Push-in L-fitting, long · Push-in fittings
NPQH-L-G38-Q8-P10	Push-in L-fitting · Push-in fittings
NPQH-D-G38-Q8-P10	Push-in fitting · Push-in fittings
NPQH-D-G38-Q10-P10	Push-in fitting · Push-in fittings
NPQH-T-G38-Q8-P10	Push-in T-fitting · Push-in fittings
NPQH-T-G38-Q10-P10	Push-in T-fitting · Push-in fittings
SMB-8-C	Mounting kit · Mounting kits for proximity sensors, other sensors
NPFC-T-2G38-R38-FMF	T-fitting · Other connectors
NPFC-T-G38-2R38-FMM	T-fitting · Other connectors
NPFC-D-2G38-M	Double nipple · Other connectors
NPFC-E1-2G38-FM	Extension · Other connectors
NPFC-R-G38-G18-MF	Reducing nipple · Other connectors
NPFC-R-G38-G14-MF	Reducing nipple · Other connectors
NPFC-R-G38-G18-FM	Reducing nipple · Other connectors
NPFC-R-G38-G14-FM	Reducing nipple · Other connectors
NPFC-D-2G38-M-P50	Double nipple · Other connectors
NPFC-R-G38-G14-MF-P50	Reducing nipple · Other connectors
ZBH-12-B	Centring sleeve · Mounting accessories
NPFC-DS-G14-G38-M	Double nipple · Other connectors
NPFC-DS-G38-G38-M	Double nipple · Other connectors
NPFC-RS-G38-G18-MF	Reducing nipple · Other connectors
NPFC-RS-G38-G14-MF	Reducing nipple · Other connectors
