How can I get a price quote for Festo DFPD-HD-18000-?

You can request a fast quote for Festo DFPD-HD-18000- from Yılsa Engineering. Reference part number YLSAPQWG9VUEJZC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DFPD-HD-18000- in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DFPD-HD-18000- genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DFPD-HD-18000-?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

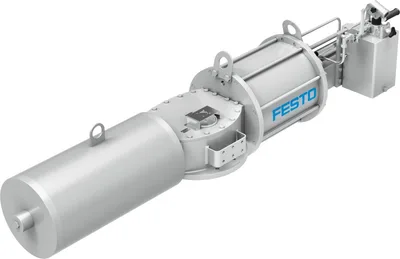

Festo DFPD-HD-18000-

Quarter turn actuator. Ideal for applications with high torques up to max. 32,000 Nm. Extremely modular for a variety of uses: configurable spring forces, a choice between right or left direction of rotation and mechanical or hydraulic manual override. With safety functions. Namur connection pattern to VDI/VDE 3845. Variants to EU Explosion Protection Directive (ATEX)

FestoMFR # DFPD-HD-18000-SKU # YLSAPQWG9VUEJZC

Size of valve actuator18000

Flange hole patternF30

Swivel angle90

End-position adjustment range at 0°-5, 5

Shaft connection depth200

Fitting connection conforms to standardISO 5211

Have questions?Chat on WhatsApp

About This Product

Festo DFPD-HD-18000-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size of valve actuator18000

Flange hole patternF30

Piston diameter335 mm, 385 mm, 435 mm, 485 mm, 535 mm, 585 mm

Swivel angle90

End-position adjustment range at 0°-5, 5

End-position adjustment range at nominal swivel angle-5, 5

Shaft connection depth200

Fitting connection conforms to standardISO 5211

CushioningNo cushioning

Mounting positionAny, Horizontal

Mode of operationDouble-acting, Single-acting

DesignScotch yoke system

Position detectionOptical

Closing directionCloses to the right, closes to the left

Symbol00991265, 00991266

Certified for safety function to ISO 13849 and IEC 61508 (SIL)Product can be used in SRP/CS up to SIL 2 (Low Demand)

Operating pressure0.1, 0.85

Operating pressure1, 8.5

Operating pressure14.5, 123.25

Nominal operating pressure0.3, 0.6

Nominal operating pressure3, 6

Nominal operating pressure43.5, 87

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Certificate issuing authorityGerman Technical Control Board North (TÜV Nord) 212170802

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIB T6...T4 Gb X

Explosion ignition protection type for dustEx h IIC T85°C...T105°C Db X

Explosion ambient temperature-20°C <= Ta <= +80°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumDew point at least 10 °C below the ambient temperature and temperature of the medium, Lubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Degree of protectionIP66M, IP67M

Ambient temperature-20, 80

Note on torqueThe operating torque of the actuator must not be higher than the maximum permissible torque listed in ISO 5211, with reference to the size of the mounting flange and of the coupling.

Max. output torque18000

Product weight259, 856

Shaft connectionV72

Pneumatic connectionG1/2, G1

Note on materialsRoHS compliant

Material end capSteel

Material stop screwSteel

Material bushingBronze, PTFE

Material sealsNBR, TPE-U(PU)

Material springSpring steel

Material spring rodHard-chrome-plated steel

Material housingSteel

Material pistonSteel

Material piston rodHard-chrome-plated steel

Material tie rodSteel

Material cylinder barrelNickel-plated steel

Accessories 2

Genuine accessories that can be used with the Festo DFPD-HD-18000- motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
