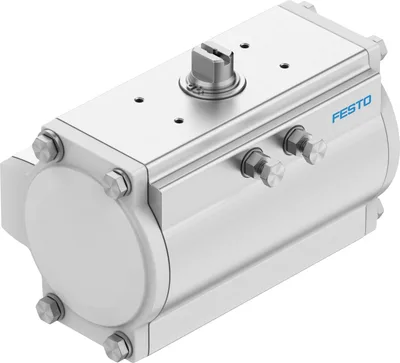

Festo DFPD-E-N-125-RP-90-RD-F0507

Quarter turn actuator. Up to 20 % lower air consumption for increased energy efficiency. Compact and lightweight design. Optimised for standard applications. Reliable gear rack-pinion technology for precise motion. Flexible installation options and various sizes available. Operating pressure up to 8 bar for a variety of applications

FestoMFR # DFPD-E-N-125-RP-90-RD-F0507SKU # YLS9MGUBIUGNBDZ

Size of valve actuator125

Flange hole patternF0507

Swivel angle90

End-position adjustment range at 0°-5, 5

Shaft connection depth19.5

Fitting connection conforms to standardISO 5211

Have questions?Chat on WhatsApp

About This Product

Festo DFPD-E-N-125-RP-90-RD-F0507

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size of valve actuator125

Flange hole patternF0507

Swivel angle90

End-position adjustment range at 0°-5, 5

End-position adjustment range at nominal swivel angle-5, 5

Shaft connection depth19.5

Fitting connection conforms to standardISO 5211

CushioningNo cushioning

Mounting positionAny

Mode of operationDouble-acting

DesignRack and pinion

Closing directionCloses to the right

Symbol00991265

Valve connection conforms to standardVDI/VDE 3845 (NAMUR)

Connection point for positioner and position sensor conforms to standardVDI/VDE 3845 size AA 1

Device type according to VDMA 66413Safety device

Safety functionThe safety function consists of the actuator switching to the specified safety switching position. This switching movement is achieved by pressurising the corresponding pressure chamber with compresse

Burst pressure24

Operating pressure0.2, 0.8

Operating pressure2, 8

Operating pressure29, 116

Nominal operating pressure0.55

Nominal operating pressure5.5

Nominal operating pressure79.75

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb X

Explosion ignition protection type for dustEx h IIIC T105°C Db X

Explosion ambient temperature-20°C <= Ta <= +80°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumDew point at least 10 °C below the ambient temperature and temperature of the medium, Lubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 60

Ambient temperature-20, 80

Torque at nominal operating pressure and 0° swivel angle125.1

Torque at nominal operating pressure and 90° swivel angle125.1

Note on torqueThe operating torque of the actuator must not be higher than the maximum permissible torque listed in ISO 5211, with reference to the size of the mounting flange and of the coupling.

Air consumption at 0.6 MPa (6 bar, 87 psi) per cycle 0°-nominal swivel angle-0°7.4

Product weight4360

Shaft connectionT17

Pneumatic connection1/4 NPT

Note on materialsRoHS compliant

Material coverCoated die-cast aluminium

Material sealsNBR

Material housingAnodised aluminium

Material pistonDie-cast aluminium

Material bearingPOM

Material camHigh-alloy stainless steel

Material screwsHigh-alloy stainless steel
