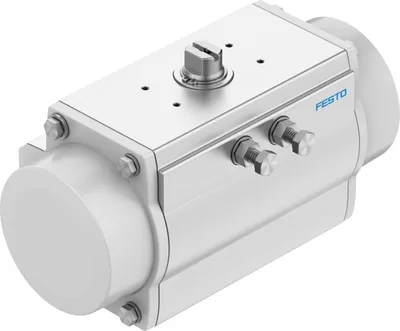

Festo DFPD-E-185-RP-90-RS40-F0710

Quarter turn actuator. Up to 20 % lower air consumption for increased energy efficiency. Compact and lightweight design. Optimised for standard applications. Reliable gear rack-pinion technology for precise motion. Flexible installation options and various sizes available. Operating pressure up to 8 bar for a variety of applications

FestoMFR # DFPD-E-185-RP-90-RS40-F0710SKU # YLSA3UL9ZFQ5NZ

Size of valve actuator185

Flange hole patternF0710

Swivel angle90

End-position adjustment range at 0°-5, 5

Shaft connection depth25

Fitting connection conforms to standardISO 5211

Have questions?Chat on WhatsApp

About This Product

Festo DFPD-E-185-RP-90-RS40-F0710

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size of valve actuator185

Flange hole patternF0710

Swivel angle90

End-position adjustment range at 0°-5, 5

End-position adjustment range at nominal swivel angle-5, 5

Shaft connection depth25

Fitting connection conforms to standardISO 5211

CushioningNo cushioning

Mounting positionAny

Mode of operationSingle-acting

DesignRack and pinion

Closing directionCloses to the right

Symbol00991266

Valve connection conforms to standardVDI/VDE 3845 (NAMUR)

Connection point for positioner and position sensor conforms to standardVDI/VDE 3845 size AA 1

Device type according to VDMA 66413Safety device

Safety functionThe safety function consists of the actuator switching to the specified safety switching position when the compressed air is switched off and the spring chamber is exhausted. This switching movement i

Burst pressure24

Operating pressure0.2, 0.8

Operating pressure2, 8

Operating pressure29, 116

Nominal operating pressure0.4

Nominal operating pressure4

Nominal operating pressure58

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb X

Explosion ignition protection type for dustEx h IIIC T105°C Db X

Explosion ambient temperature-20°C <= Ta <= +80°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumDew point at least 10 °C below the ambient temperature and temperature of the medium, Lubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 60

Ambient temperature-20, 80

Torque at nominal operating pressure and 0° swivel angle85

Torque at nominal operating pressure and 90° swivel angle48.8

Note on torqueThe operating torque of the actuator must not be higher than the maximum permissible torque listed in ISO 5211, with reference to the size of the mounting flange and of the coupling.

Spring return torque at 0° swivel angle51.3

Spring return torque at 90° swivel angle87.6

Air consumption at 0.6 MPa (6 bar, 87 psi) per cycle 0°-nominal swivel angle-0°5.5

Product weight7214

Shaft connectionT22

Pneumatic connectionG1/4

Note on materialsRoHS compliant

Material coverCoated die-cast aluminium

Material sealsNBR

Material springSpring steel

Material housingAnodised aluminium

Material pistonDie-cast aluminium
