How can I get a price quote for Festo DFM-32-50-P-A-GF-F1A?

You can request a fast quote for Festo DFM-32-50-P-A-GF-F1A from Yılsa Engineering. Reference part number YLSKZLOOAPEAD0A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DFM-32-50-P-A-GF-F1A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DFM-32-50-P-A-GF-F1A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DFM-32-50-P-A-GF-F1A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

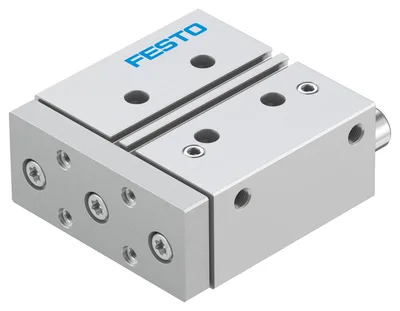

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo DFM-32-50-P-A-GF-F1A

Guided drive. Drive and guide unit in a single housing. High resistance to torques and lateral forces. Plain or recirculating ball bearing guide. Wide variety of mounting and attachment options. Wide range of variants for customised applications. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable thanks to extended life cycle and easier repairs

FestoMFR # DFM-32-50-P-A-GF-F1ASKU # YLSKZLOOAPEAD0A

Stroke50

Piston diameter32 mm

Operating mode, drive unitYoke

Mounting positionAny

GuidePlain-bearing guide

DesignGuidance

Have questions?Chat on WhatsApp

About This Product

Festo DFM-32-50-P-A-GF-F1A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Distance from centre of gravity of load to yoke plate xs50

Stroke50

Piston diameter32 mm

Operating mode, drive unitYoke

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

GuidePlain-bearing guide

DesignGuidance

Position detectionVia proximity switch

Symbol00991737

VariantsMetals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug

Operating pressure0.15, 1

Operating pressure1.5, 10

Max. speed0.8

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Ambient temperature-20, 80

Impact energy in end positions0.4

Max. force Fy1227

Max. force Fy static1227

Max. force Fz1227

Max. force Fz static1227

Max. moment Mx47.84

Max. torque Mx static47.84

Max. moment My24.53

Max. torque My static24.53

Max. moment Mz24.53

Max. torque Mz static24.53

Max. permissible torque load Mx as a function of stroke7.83

Max. effective load dependent upon stroke at defined distance xs150

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke415

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke482

Moving mass1191

Product weight2254

alternative connectionsSee product drawing

Pneumatic connectionG1/8

Note on materialsRoHS compliant

Material coverWrought aluminium alloy

Material sealsNBR

Material housingWrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Accessories 16

Genuine accessories that can be used with the Festo DFM-32-50-P-A-GF-F1A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
NPQE-DK-G18-Q6-F1A-P10	Push-in fitting · Fittings
PUN-H-6X1-NT	Plastic tubing · Tubes
PUN-H-6X1-BL	Plastic tubing · Tubes
PUN-H-6X1-SW	Plastic tubing · Tubes
PUN-H-6X1-TBL	Plastic tubing · Tubes
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
NPQE-L-R18-Q6-F1A-P10	Push-in fitting · Fittings
VFOE-LE-T-G18-Q4-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q8-F1A	One-way flow control valve · Function fittings
NPQE-DK-G18-Q4-F1A-P10	Push-in fitting · Push-in fittings
NPQE-DK-G18-Q8-F1A-P10	Push-in fitting · Push-in fittings
NPQE-DK-G18-Q10-F1A-P10	Push-in fitting · Push-in fittings
