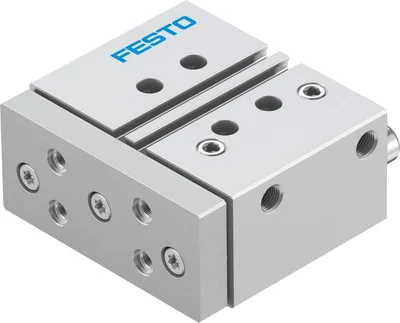

Festo DFM-25-25-P-A-KF-F1A

Guided drive. Drive and guide unit in a single housing. High resistance to torques and lateral forces. Plain or recirculating ball bearing guide. Wide variety of mounting and attachment options. Wide range of variants for customised applications. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable thanks to extended life cycle and easier repairs

FestoMFR # DFM-25-25-P-A-KF-F1ASKU # YLSKJJWN49LZP9G

Stroke25

Piston diameter25 mm

Operating mode, drive unitYoke

Mounting positionAny

GuideRecirculating ball bearing guide

DesignGuidance

Have questions?Chat on WhatsApp

About This Product

Festo DFM-25-25-P-A-KF-F1A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Distance from centre of gravity of load to yoke plate xs50

Stroke25

Piston diameter25 mm

Operating mode, drive unitYoke

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

GuideRecirculating ball bearing guide

DesignGuidance

Position detectionVia proximity switch

Symbol00991737

VariantsMetals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug

Operating pressure0.15, 1

Operating pressure1.5, 10

Max. speed0.8

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Ambient temperature-5, 60

Impact energy in end positions0.3

Max. force Fy863

Max. force Fy static1060

Max. force Fz863

Max. force Fz static1060

Max. moment Mx29.35

Max. torque Mx static36.04

Max. moment My12.52

Max. torque My static15.37

Max. moment Mz12.52

Max. torque Mz static15.37

Max. permissible torque load Mx as a function of stroke5.77

Max. effective load dependent upon stroke at defined distance xs105

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295

Moving mass611

Product weight1221

Centre of gravity of moving mass as a function of stroke26.4

alternative connectionsSee product drawing

Pneumatic connectionG1/8

Note on materialsRoHS compliant

Material coverWrought aluminium alloy

Material sealsNBR

Material housingWrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Accessories 3

Genuine accessories that can be used with the Festo DFM-25-25-P-A-KF-F1A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VFOE-LE-T-G18-Q4-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q8-F1A	One-way flow control valve · Function fittings
