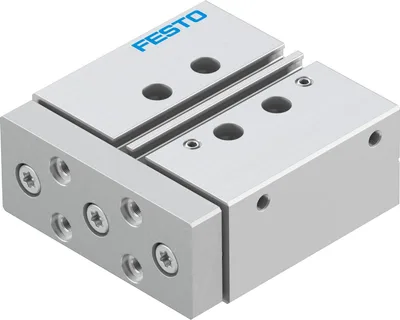

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo DFM-20-30-P-A-GF-F1A

Guided drive. Drive and guide unit in a single housing. High resistance to torques and lateral forces. Plain or recirculating ball bearing guide. Wide variety of mounting and attachment options. Wide range of variants for customised applications. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable thanks to extended life cycle and easier repairs

FestoMFR # DFM-20-30-P-A-GF-F1ASKU # YLSRSI7E3OD0KRM

Stroke30

Piston diameter20 mm

Operating mode, drive unitYoke

Mounting positionAny

GuidePlain-bearing guide

DesignGuidance

Have questions?Chat on WhatsApp

About This Product

Festo DFM-20-30-P-A-GF-F1A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Distance from centre of gravity of load to yoke plate xs50

Stroke30

Piston diameter20 mm

Operating mode, drive unitYoke

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

GuidePlain-bearing guide

DesignGuidance

Position detectionVia proximity switch

Symbol00991737

VariantsMetals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug

Operating pressure0.2, 1

Operating pressure2, 10

Max. speed0.8

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Ambient temperature-20, 80

Impact energy in end positions0.2

Max. force Fy354.7

Max. force Fy static354.7

Max. force Fz354.7

Max. force Fz static354.7

Max. moment Mx10.29

Max. torque Mx static10.29

Max. moment My3.37

Max. torque My static3.37

Max. moment Mz3.37

Max. torque Mz static3.37

Max. permissible torque load Mx as a function of stroke1.36

Max. effective load dependent upon stroke at defined distance xs27

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke141

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke188

Moving mass415

Product weight850

alternative connectionsSee product drawing

Pneumatic connectionM5

Note on materialsRoHS compliant

Material coverWrought aluminium alloy

Material sealsNBR

Material housingWrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Accessories 13

Genuine accessories that can be used with the Festo DFM-20-30-P-A-GF-F1A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
NPQE-DK-M5-Q4-F1A-P10	Push-in fitting · Fittings
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
VFOE-LE-T-M5-Q6-F1A	One-way flow control valve · Function fittings
NPQE-DK-M5-Q6-F1A-P10	Push-in fitting · Push-in fittings
NPQE-L-M5-Q4-F1A-P10	Push-in fitting · Push-in fittings
NPQE-L-M5-Q6-F1A-P10	Push-in fitting · Push-in fittings
