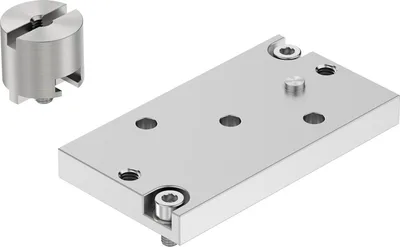

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo DADG-AK-F9-1

Adapter kit

FestoMFR # DADG-AK-F9-1SKU # YLSWZZA6PAPPEL

Size1

Based on standardVDI/VDE 3847-2

Mounting positionAny

Operating pressure0.2, 0.8

Operating pressure2, 8

Operating pressure29, 116

Have questions?Chat on WhatsApp

About This Product

Festo DADG-AK-F9-1 (Adapter kit) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo DADG-AK-F9-1 — price, stock availability and technical specifications.

Festo DADG-AK-F9-1

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size1

Based on standardVDI/VDE 3847-2

Mounting positionAny

Operating pressure0.2, 0.8

Operating pressure2, 8

Operating pressure29, 116

Nominal operating pressure0.6

Nominal operating pressure6

Nominal operating pressure87

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumDew point at least 10 °C below the ambient temperature and temperature of the medium, Lubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364 zone III

Ambient temperature-20, 80

Product weight187

Note on materialsRoHS compliant

Material adapterHigh-alloy stainless steel

Material adapter plateAnodised wrought aluminium alloy

Material sealsNBR

Material screwsHigh-alloy stainless steel
