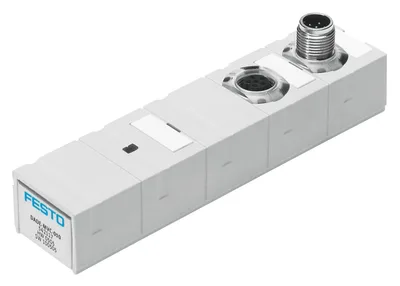

FESTO DADE-MVC-010
Measured-value transducer. For standards-based cylinders DNCI and DDPC. Converts sensor signals into voltage or current signals. Mounting via through-holes
Diagnostic functionDisplay via LED
Mounting positionAny
Short circuit current ratingYes
Reverse polarity protectionfor PLC plug S1
Repetition accuracymin. ±0.1 mm
Analogue output0 - 10 V, To EN 61131-2
About This Product
Measured-value transducer. For standards-based cylinders DNCI and DDPC. Converts sensor signals into voltage or current signals. Mounting via through-holes
FESTO DADE-MVC-010
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Diagnostic functionDisplay via LED
Mounting positionAny
Short circuit current ratingYes
Reverse polarity protectionfor PLC plug S1
Repetition accuracymin. ±0.1 mm
Analogue output0 - 10 V, To EN 61131-2
Power supply requirementsPELV
Debounce time for inputs3
Nominal operating voltage DC24
Power failure buffering for logic voltage10
Residual ripple4 Vss
Current consumption at nominal operating voltage20, 30
Permissible voltage fluctuations+/-25%
ApprovalRCM
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-20, 70
Relative air humidity95%, Non-condensing
Degree of protectionIP65, IP67
Ambient temperature0, 55
Product weight128
Linearity error in ± %FS0.2
Characteristic for outputsTo EN 61131-2
Characteristic for inputsTo EN 61131-2
Switching logic for inputsPNP (positive switching)
Switching logic for outputsPNP (positive switching)
Electrical connection measuring systemM12, Socket, 8-pin
Electrical connection PLCM12, Plug, 8-pin
Type of mountingWith through-hole
Material housingReinforced PBT
