How can I get a price quote for Festo CRHD-80- -PPV-A-MS?

You can request a fast quote for Festo CRHD-80- -PPV-A-MS from Yılsa Engineering. Reference part number YLS0Z166XFZZ9QT. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CRHD-80- -PPV-A-MS in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CRHD-80- -PPV-A-MS genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CRHD-80- -PPV-A-MS?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

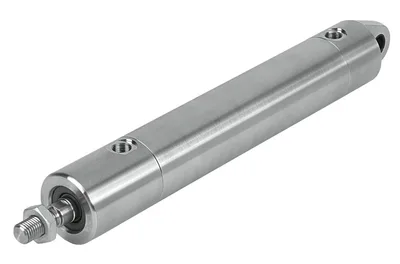

Photo may not represent actual item. Refer to name and product specs for all details.

Festo CRHD-80- -PPV-A-MS

Round cylinder. Corrosion resistant against aggressive ambient conditions. Easy-to-clean design, optimised for very exacting demands. Flexible design thanks to different end caps. Piston rod with male thread. For position sensing

FestoMFR # CRHD-80- -PPV-A-MSSKU # YLS0Z166XFZZ9QT

Stroke10, 500

Piston diameter80 mm

Mounting positionAny

DesignPiston, Piston rod

Position detectionVia proximity switch

Symbol00991235

Have questions?Chat on WhatsApp

About This Product

Festo CRHD-80- -PPV-A-MS

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke10, 500

Piston diameter80 mm

CushioningPneumatic cushioning, adjustable at both ends

Mounting positionAny

DesignPiston, Piston rod

Position detectionVia proximity switch

Symbol00991235

Operating pressure1, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitable for use with foodSee supplementary material information

Ambient temperature-20, 80

Cushioning length31

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke2721

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke3016

Moving mass for 0 mm stroke717

Additional moving mass per 10 mm stroke38

Basic weight for 0 mm stroke5072

Additional weight per 10 mm stroke100

Pneumatic connectionG3/8

Material coverHigh-alloy stainless steel

Material sealsNBR, TPE-U(PU)

Material housingHigh-alloy stainless steel

Material piston rodHigh-alloy stainless steel

Accessories 39

Genuine accessories that can be used with the Festo CRHD-80- -PPV-A-MS motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PTFEN-10X1,5-NT	Plastic tubing · Tubes
CRSG-M20X1,5	Rod clevis · Piston-rod attachments
NPQR-DK-G38-Q10	Push-in fitting · Fittings
CRSMB-8-32/100	Mounting kit · Retainer for proximity sensor
CRSGS-M20X1,5	Rod eye · Piston-rod attachments
NPQR-L-G38-Q10	Push-in fitting · Fittings
CRFK-M20X1,5	Self-aligning rod coupler · Piston-rod attachments
CRGRLA-3/8-B	One-way flow control valve · Function fittings
CRSMT-8M-PS-24V-K-0,3-M8D-EX2	Proximity sensor · Proximity sensors
CRSMT-8M-PS-24V-K-5,0-OE-EX2	Proximity sensor · Proximity sensors
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
VFOE-LE-T-G38-Q10	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q8	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10-P20	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q8-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10-F1A	One-way flow control valve · Function fittings
CRCN-3/8-PK-6	Barbed fitting · Stainless-steel fittings
CRQS-3/8-10-I	Push-in fitting · Stainless-steel fittings
CRQS-3/8-12-I	Push-in fitting · Stainless-steel fittings
CRQS-3/8-10	Push-in fitting · Stainless-steel fittings
CRQS-3/8-12	Push-in fitting · Stainless-steel fittings
CRQSL-3/8-10	Push-in L-fitting · Stainless-steel fittings
CRQSL-3/8-12	Push-in L-fitting · Stainless-steel fittings
NPFC-T-2G38-R38-FMF	T-fitting · Other connectors
NPFC-T-G38-2R38-FMM	T-fitting · Other connectors
NPFC-D-2G38-M	Double nipple · Other connectors
NPFC-E1-2G38-FM	Extension · Other connectors
NPFC-R-G38-G18-MF	Reducing nipple · Other connectors
NPFC-R-G38-G14-MF	Reducing nipple · Other connectors
NPFC-R-G38-G18-FM	Reducing nipple · Other connectors
NPFC-R-G38-G14-FM	Reducing nipple · Other connectors
NPFC-D-2G38-M-P50	Double nipple · Other connectors
NPFC-R-G38-G14-MF-P50	Reducing nipple · Other connectors
NPFC-DS-G14-G38-M	Double nipple · Other connectors
NPFC-DS-G38-G38-M	Double nipple · Other connectors
NPFC-RS-G38-G18-MF	Reducing nipple · Other connectors
NPFC-RS-G38-G14-MF	Reducing nipple · Other connectors
