How can I get a price quote for Festo CRDSNU-100?

You can request a fast quote for Festo CRDSNU-100 from Yılsa Engineering. Reference part number YLSNJOPEWMRUE48. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CRDSNU-100 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CRDSNU-100 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CRDSNU-100?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

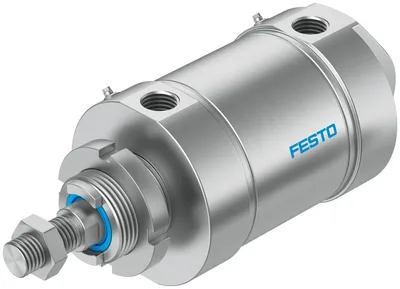

Festo CRDSNU-100

Round cylinder. Corrosion resistant against aggressive ambient conditions. Easy-to-clean design. Long service life thanks to optional dry-running seal. Wide range of variants for customised applications. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. Suitable for direct contact with food according to European Regulation (EC) No. 1935/2004. FDA-compliant seal and NSF-H1 lubrication

FestoMFR # CRDSNU-100SKU # YLSNJOPEWMRUE48

Stroke1, 500

Piston diameter100 mm

Piston rod threadM12

Mounting positionAny

Piston-rod endMale thread, Female thread

DesignPiston, Piston rod, Cylinder barrel

Have questions?Chat on WhatsApp

About This Product

Festo CRDSNU-100

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke1, 500

Piston diameter100 mm

Piston rod threadM12

CushioningElastic cushioning rings/plates at both ends, Self-adjusting pneumatic end-position cushioning, Pneumatic cushioning, adjustable at both ends

Mounting positionAny

Piston-rod endMale thread, Female thread

DesignPiston, Piston rod, Cylinder barrel

Position detectionVia proximity switch

VariantsExtended male piston rod thread, Piston rod with female thread, Custom thread on the piston rod, Extended piston rod, Bearing cap without mounting thread, Lateral supply port, Through piston rod, Pist

Operating pressure0.1, 1

Mode of operationDouble-acting

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb

Explosion ignition protection type for dustEx h IIIC T120°C Db

Explosion ambient temperature-20°C <= Ta <= +60°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC4 - Very high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L, VDMA24364 zone III

Suitable for use with foodSee declaration of conformity

Ambient temperature-20, 80

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke4418

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke4712

Moving mass for 0 mm stroke1018

Additional moving mass per 10 mm stroke39

Basic weight for 0 mm stroke8527

Additional weight per 10 mm stroke75

Type of mountingWith accessories

Pneumatic connectionG1/2

Note on materialsRoHS compliant

Material coverHigh-alloy stainless steel

Material piston rodHigh-alloy stainless steel

Material cylinder barrelHigh-alloy stainless steel

Accessories 26

Genuine accessories that can be used with the Festo CRDSNU-100 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PTFEN-12X2-NT	Plastic tubing · Tubes
CRSG-M20X1,5	Rod clevis · Piston-rod attachments
CRSGS-M20X1,5	Rod eye · Piston-rod attachments
SMBR-8-8/100-S6	Mounting kit · Retainer for proximity sensor
CRGRLA-1/2-B	One-way flow control valve · Function fittings
NPQR-DK-G12-Q12	Push-in fitting · Fittings
NPQR-L-G12-Q12	Push-in fitting · Fittings
CRSMT-8M-PS-24V-K-5,0-OE-EX2	Proximity sensor · Proximity sensors
CRSMT-8M-PS-24V-K-0,3-M8D-EX2	Proximity sensor · Proximity sensors
CRFK-M20X1,5	Self-aligning rod coupler · Piston-rod attachments
LBG-100-R3	Clevis foot · Mounting accessories
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
VFOE-LE-T-G12-Q12	One-way flow control valve · Function fittings
VFOE-LE-T-G12-Q12-P20	One-way flow control valve · Function fittings
CRQS-1/2-12-I	Push-in fitting · Stainless-steel fittings
CRQS-1/2-16-I	Push-in fitting · Stainless-steel fittings
CRQS-1/2-12	Push-in fitting · Stainless-steel fittings
CRQS-1/2-16	Push-in fitting · Stainless-steel fittings
CRQSL-1/2-12	Push-in L-fitting · Stainless-steel fittings
CRQSL-1/2-16	Push-in L-fitting · Stainless-steel fittings
CRQST-1/2-16	Push-in T-fitting · Stainless-steel fittings
CR-M50X2	Nut · Cylinder mountings
DARP-M20P-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
SACC-N8-SP	Impact protection · Cylinder sensor for mounting kit
