How can I get a price quote for Festo CRDNG-63- -PPV-A?

You can request a fast quote for Festo CRDNG-63- -PPV-A from Yılsa Engineering. Reference part number YLSXWTCMOOYEAPO. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CRDNG-63- -PPV-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CRDNG-63- -PPV-A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CRDNG-63- -PPV-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

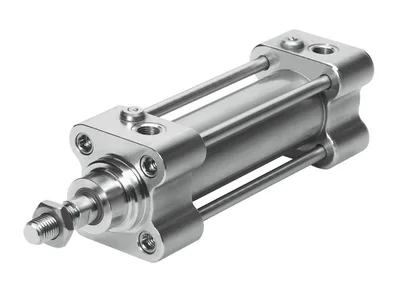

Festo CRDNG-63- -PPV-A

ISO cylinder. ISO 15552 (ISO 6431, VDMA 24562). Corrosion resistant against aggressive ambient conditions. Easy-to-clean design. Variants: through piston rod, heat-resistant design. Threaded mounting, mounting via accessories. For position sensing. Sustainable thanks to extended life cycle and easier repairs

FestoMFR # CRDNG-63- -PPV-ASKU # YLSXWTCMOOYEAPO

Stroke10, 2000

Piston diameter63 mm

Piston rod threadM16x1.5

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

Have questions?Chat on WhatsApp

About This Product

Festo CRDNG-63- -PPV-A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke10, 2000

Piston diameter63 mm

Piston rod threadM16x1.5

CushioningPneumatic cushioning, adjustable at both ends

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

DesignPiston, Piston rod, Tie rod 1, Cylinder barrel

Position detectionVia proximity switch

Symbol00991235

Operating pressure0.06, 1

Operating pressure0.6, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC4 - Very high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitable for use with foodSee supplementary material information

Ambient temperature-20, 80

Cushioning length23

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1682

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1870

Moving mass for 0 mm stroke609

Additional moving mass per 10 mm stroke25

Basic weight for 0 mm stroke3555

Additional weight per 10 mm stroke60

Type of mountingWith female thread, With accessories

Pneumatic connectionG3/8

Material coverCast stainless steel

Material sealsTPE-U(PU)

Material housingHigh-alloy stainless steel

Material pistonWrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Material cylinder barrelHigh-alloy stainless steel

Material nutHigh-alloy stainless steel

Material bearingPOM

Material collar nutHigh-alloy stainless steel

Material tie rodHigh-alloy stainless steel

Accessories 42

Genuine accessories that can be used with the Festo CRDNG-63- -PPV-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CRSMEO-4-K-LED-24	Proximity sensor · Proximity sensors
CRHNC-63	Foot mounting · Cylinder mountings
NPQR-DK-G38-Q10	Push-in fitting · Fittings
CRFNG-63	Flange mounting · Cylinder mountings
NPQR-L-G38-Q10	Push-in fitting · Fittings
CRGRLA-3/8-B	One-way flow control valve · Function fittings
CRSG-M16X1,5	Rod clevis · Piston-rod attachments
CRSGS-M16X1,5	Rod eye · Piston-rod attachments
CRFK-M16X1,5	Self-aligning rod coupler · Piston-rod attachments
PTFEN-10X1,5-NT	Plastic tubing · Tubes
VFOE-LE-T-G38-Q10	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q8	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10-P20	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q8-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G38-Q10-F1A	One-way flow control valve · Function fittings
CRQS-3/8-10-I	Push-in fitting · Stainless-steel fittings
CRQS-3/8-12-I	Push-in fitting · Stainless-steel fittings
CRZNG-63	Trunnion flange · Cylinder mountings
CRQS-3/8-10	Push-in fitting · Stainless-steel fittings
CRQS-3/8-12	Push-in fitting · Stainless-steel fittings
CRQSL-3/8-10	Push-in L-fitting · Stainless-steel fittings
CRQSL-3/8-12	Push-in L-fitting · Stainless-steel fittings
CRSMT-8M-PS-24V-K-5,0-OE-EX2	Proximity sensor · Cylinder sensor for mounting kit
CRSMT-8M-PS-24V-K-10,0-OE-EX2	Proximity sensor · Cylinder sensor for mounting kit
CRSMT-8M-PS-24V-K-0,3-M12-EX2	Proximity sensor · Cylinder sensor for mounting kit
CRSMT-8M-PS-24V-K-0,3-M8D-EX2	Proximity sensor · Cylinder sensor for mounting kit
NPFC-T-2G38-R38-FMF	T-fitting · Other connectors
NPFC-T-G38-2R38-FMM	T-fitting · Other connectors
NPFC-D-2G38-M	Double nipple · Other connectors
NPFC-E1-2G38-FM	Extension · Other connectors
NPFC-R-G38-G18-MF	Reducing nipple · Other connectors
NPFC-R-G38-G14-MF	Reducing nipple · Other connectors
NPFC-R-G38-G18-FM	Reducing nipple · Other connectors
NPFC-R-G38-G14-FM	Reducing nipple · Other connectors
NPFC-D-2G38-M-P50	Double nipple · Other connectors
NPFC-R-G38-G14-MF-P50	Reducing nipple · Other connectors
NPFC-DS-G14-G38-M	Double nipple · Other connectors
NPFC-DS-G38-G38-M	Double nipple · Other connectors
NPFC-RS-G38-G18-MF	Reducing nipple · Other connectors
NPFC-RS-G38-G14-MF	Reducing nipple · Other connectors
DARP-M16P-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
DASP-V4-8-A-R1	Sensor mounting · Mounting kits for proximity sensors, other sensors
